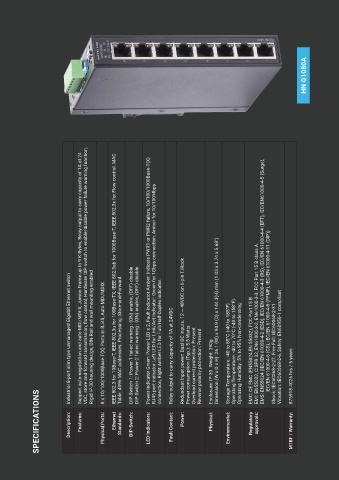

SPECIFICATIONS

Description: Industrial 8-port slim type unmanaged Gigabit Ethernet switch

Features: Support auto-negotiation and auto-MDI/MDI-X, Jumbo Frame up to 9 K Bytes, Relay output to carry capacity of 1A at 24
VDC, store and forward transmission, flow control, Hardware DIP-switch to enable/disable power failure warning function,
Rigid IP-30 housing design, DIN-Rail and wall mounting enabled

Physical Ports: 8 x 10/100/1000Base-T(X) Ports in RJ45, Auto MDI/MDIX
Ethernet IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control. MAC
Standards: Table: 4096 MAC addresses. Processing: Store-and-Forward
DIP-Switch: DIP-Switch 1: Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2: Power-2 failed warning : (ON) enable, (OFF) disable

LED Indicators: Power indicator Green: Power LED x 2, Fault indicator Amber: Indicate PWR1 or PWR2 failure, 10/100/1000Base-T(X)
RJ45 port indicator Left LED for Link/Act indicator: Green for 1Gbps connection, Amber for 10/100Mbps
connection, Right Amber LED for Full/Half-Duplex indicator.

Fault Contact: Relay output to carry capacity of 1A at 24VDC
Power: Redundant Input power: Dual DC inputs. 12 ~ 48VDC on 6-pin T.Block
Power consumption (Typ.): 5.5 Watts
Overload current protection: Present
Reverse polarity protection: Present

Physical: Enclosure: IP-30. Weight: 390g
Dimension (W x D x H): 26.1 (W) x 94.9 (D) x 144.3(H) mm (1.03 x 3.74 x 5.68")
Environmental: Storage Temperature: -40 to 85°C (-40 to 185°F)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Operating Humidity: 5% to 95% Non-condensing
Regulatory EMC: CE EMC (EN55024,EN 55032), FCC Part 15 B
approvals: EMI: EN55032, CISPR 32, EN61000-3-2, EN61000-3-3, FCC Part 15 B class A
EMS: EN55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP))
Shock: IEC60068-2-27, Free Fall: IEC60068-2-31
Vibration: IEC60068-2-6, Safety: EN60950-1 compliant
MTBF / Warranty: 875918.4026 hrs / 5 years

HN G1080A
