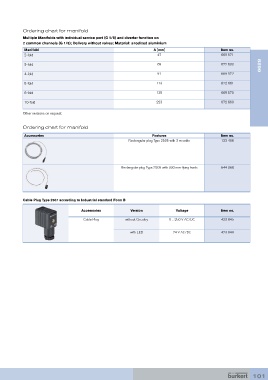

Ordering chart for manifold
Multiple Manifolds with individual service port (G 1/8) and diverter function on
2 common channels (G 1/8); Delivery without valves; Material: anodized aluminium
Manifold A [mm] Item no.
2-fold 47 669 571
6628
3-fold 69 672 633
4-fold 91 669 572
5-fold 113 672 661
6-fold 135 669 570
10-fold 223 672 660
Other versions on request.
Ordering chart for manifold
Accessories Features Item no.
Rectangular plug Type 2505 with 3 m cable 133 486
Rectangular plug Type 2505 with 300 mm flying leads 644 068
Cable Plug Type 2507 according to Industrial standard Form B
Accessories Version Voltage Item no.
Cable Plug without Circuitry 0 ... 250 V AC/DC 423 845
with LED 24 V AC/DC 423 849
