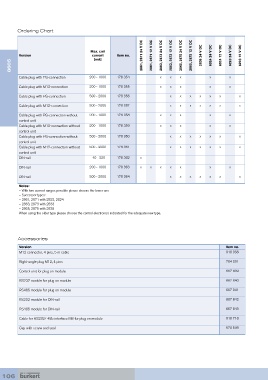

Ordering Chart

Max. coil
Version current Item no. 2861, 2871 24 V DC 2861, 2871 12 V DC 2863, 2873 24 V DC 2863, 2873 12 V DC 2865, 2875 24 V DC 2865, 2875 12 V DC 2836 24 V DC 6024 24 V DC 6024 12 V DC 6223 24 V DC 6223 12 V DC
[mA]
8605

Cable plug with PG-connection 200 - 1000 178 354 x x x x x

Cable plug with M12-connection 200 - 1000 178 355 x x x x x
Cable plug with PG-connection 500 - 2000 178 356 x x x x x x x

Cable plug with M12-connection 500 - 2000 178 357 x x x x x x x
Cable plug with PG-connection without 200 - 1000 178 358 x x x x x
control unit
Cable plug with M12-connection without 200 - 1000 178 359 x x x x x
control unit
Cable plug with PG-connection without 500 - 2000 178 360 x x x x x x x
control unit
Cable plug with M12-connection without 500 - 2000 178 361 x x x x x x x
control unit
DIN-rail 40 - 220 178 362 x

DIN-rail 200 - 1000 178 363 x x x x x x x
DIN-rail 500 - 2000 178 364 x x x x x x x

Notes:
– With two current ranges possible please choose the lower one
– Successor types:
– 2861, 2871 with 2822, 2824
– 2863, 2873 with 2833
– 2865, 2875 with 2835
When using the older type please choose the control electronics indicated for the adequate new type.

Accessories

Version Item no.
M12 connector, 4 pins, 5 m cable 918 038

Right-angle plug M12, 4 pins 784 301
Control unit for plug on module 667 839

RS232 module for plug on module 667 840

RS485 module for plug on module 667 841
RS232 module for DIN-rail 667 842

RS485 module for DIN-rail 667 843

Cable for RS232/ 485 interface M8 for plug on module 918 718
Cap with screw and seal 670 549
