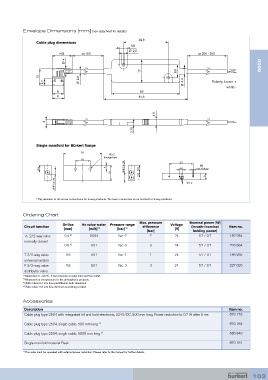

Envelope Dimensions [mm] (see datasheet for details)
32,8
Cable plug dimensions
5,8
Ø 2,2
14,8 ca 150 ca 200 - 250
4
Ø 6650
17 9,3
12 2,9
4,7 Ø 4,4 Polarity brown +
Ø
white -
8 50
9 61,6

4,5

4
53
3.2
2,15 20 through-hole
9.5 5 UNF1/4-28 9.5
21
Single manifold for Bürkert flange 7.2
53
3.2 UNF1/4-28
through-hole
20 33
M2
9.5 5 UNF1/4-28 9.5 4.8 min. 6 deep
21
7.2 9
UNF1/4-28 * 1.2

33
M2
min. 6 deep
4.8
* Pay attention to the screw connections for 3-way products. The lower connection is not needed for 2-way products.
9
1.2
Ordering Chart
Max. pressure Nominal power [W]
Orifice Kv value water Pressure range Voltage
Circuit function difference (Inrush-/nominal Item no.
[mm] [m/h] 1) [bar] 2) [V]
[bar] holding power)
A 2/2-way valve 0.4 3) 0.004 Vac.-7 7 24 5.7 / 0.7 182 284
normally closed
0.8 4) 0.01 Vac.-3 3 24 5.7 / 0.7 226 664
T 3/2-way valve 0.8 0.01 Vac.-1 1 24 5.7 / 0.7 189 292
universal version
F 3/2-way valve 0.8 0.01 Vac.-3 3 24 5.7 / 0.7 227 020
distributor valve
1) Measured at +20 ºC, 1 bar pressure at valve inlet and free outlet
2) Measured as overpressure to the atmospheric pressure
3) With orifice 0.4 mm flow permitted in both directions
4) With orifice 0.8 mm flow direction according to label

Accessories
Description Item no.
Cable plug type 2504 with integrated hit and hold electronic, 024V/DC, 500 mm long, Power reduction to 0.7 W after 5 ms 670 178

Cable plug type 2504, single cable, 500 mm long 1) 670 164

Cable plug type 2504, single cable, 5000 mm long 1) 680 840
Single manifold material Peek 670 181

1) The valve must be operated with external power reduction. Please refer to the manual for further details.
