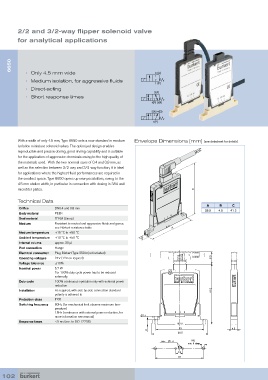

2/2 and 3/2-way flipper solenoid valve
for analytical applications

6650

• Only 4.5 mm wide 2 (A)
• Medium isolation, for aggressive fluids
1 (P)
• Direct-acting
2(A)
• Short response times
1(P) 3(R)
2(A) 4(B)

1(P)

With a width of only 4.5 mm, Type 6650 sets a new standard in medium Envelope Dimensions [mm] (see datasheet for details)
isolation miniature solenoid valves. The optimized design enables
reproducible and precise dosing, good rinsing capability and is suitable
for the application of aggressive chemicals owing to the high quality of
the materials used. With the two nominal sizes of 0.4 and 0.8 mm, as
well as the selection between 2/2-way and 3/2-way function, it is ideal
for applications where the highest fluid performances are required in
the smallest space. Type 6650 opens up new possibilities, owing to the
4.5 mm station width, in particular in connection with dosing in 384-well
micro titer plates. C

Technical Data
A B C
Orifice DN0.4 and 0.8 mm 38.5 4.5 41.2
Body material PEEK
Seal material FFKM (Simriz)
Medium Resistant to neutral and aggressive fluids and gases;
see Bürkert resistance table A
Medium temperature +15 °C to +50 °C
Ambient temperature +10 °C to +50 °C B
Internal volume approx. 30 µl
Port connection Flange
Electrical connection Plug Bürkert Type 2504 (not included) 8.3
Operating voltages 24V (12V on request) 8.3
Voltage tolerance ±10%
Nominal power 5.7 W
For 100% duty cycle power has to be reduced
externally.
Duty cycle 100% continuous operation only with external power
reduction 41.2
Installation As required; with side by side connection standard 41.2
polarity is adhered to
Protection class IP65
Switching frequency 80Hz (for mechanical limit observe maximum tem-
perature) 2.1
15Hz (continuous with external power reduction, for
more information see manual) 2.1
Response times <5 ms (acc. to ISO 12238) 33 4.5
3
38.5
33 4.5
3
38.5
max. 1.4 M2
min. 6 deep
max. 1.4 M2
min. 6 deep
4.8
33
4.8
33
