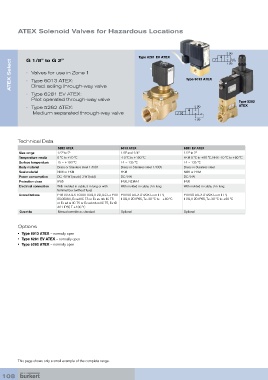

ATEX Solenoid Valves for Hazardous Locations

2 (A)
Type 6281 EV ATEX 1 (P)
G 1/8” to G 2”
ATEX Select • Valves for use in Zone 1 Type 6013 ATEX

• Type 6013 ATEX:
Direct acting through-way valve
• Type 6281 EV ATEX:
Pilot operated through-way valve Type 5282
• Type 5282 ATEX: 2 (A) ATEX
Medium separated through-way valve

1 (P)

Technical Data
5282 ATEX 6013 ATEX 6281 EV ATEX
Size range 1/2” to 2” 1/8” and 1/4” 1/2” to 2”
Temperature media 0 °C to +70 °C -10 ºC to +100 ºC FKM 0 °C to +90 °C, NBR -10 °C to +80 °C
Surface temperature T5 = +100 °C T4 = 135 °C T4 = 135 °C
Body material Brass or Stainless steel 1.4581 Brass or Stainless steel 1.4305 Brass or Stainless steel
Seal material NBR or FKM FKM NBR or FKM
Power consumption DC: 40 W (inrush) 3 W (hold) DC: 9 W DC: 9 W
Protection class IP65 IP65, NEMA4 IP65
Electrical connection With molded-in cable, 3 m long or with With molded-in cable, 3 m long With molded-in cable, 3 m long
terminal box (without fuse)
Accreditations PTB 03 ATEX 1030X II 2G, II 2D, IEC Ex PTB PTB 00 ATEX 2129X Ex m II T4, PTB 00 ATEX 2129X Ex m II T4,
05.0026X, Ex ed IIC T5 or Ex es mb IIC T5 II 2G, II 2D IP65, Tu -30 °C to +60 °C II 2G, II 2D IP65, Tu -30 °C to +60 °C
or Ex ed ia IIC T5 or Ex ed mb ia IIC T5, Ex tD
A21 IP65 T +100 °C
Override Manual override as standard Optional Optional

Options
• Type 6013 ATEX – normally open
• Type 6281 EV ATEX – normally open
• Type 5282 ATEX – normally open

This page shows only a small example of the complete range.
