P. 111

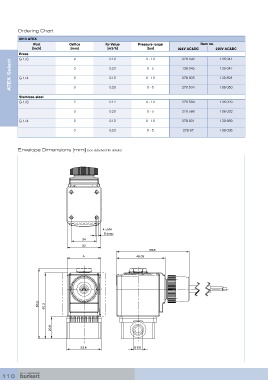

Ordering Chart
6013 ATEX
Port Orifice Kv Value Pressure range Item no.
[inch] [mm] [m3/h] [bar] 024V AC&DC 230V AC&DC
Brass 2 0.12 0 - 10 278 592 136 041
G 1/8
ATEX Select G 1/4 3 2 0.23 0 - 10 136 045 136 047
0 - 5
139 894
0.12
278 605
Stainless steel 3 0.23 0 - 5 278 594 136 050
G 1/8 2 0.12 0 - 10 278 584 136 029
3 0.23 0 - 5 278 586 136 032
G 1/4 2 0.12 0 - 10 278 601 139 889
3 0.23 0 - 5 278 87 136 035
Envelope Dimensions [mm] (see datasheet for details)
4 x M4
8 deep
24
32
68.8
A 46.05
66.2 62.2
20.8
32.6 G1/8
110
