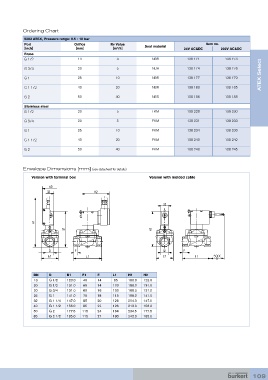

Ordering Chart
5282 ATEX, Pressure range: 0.5 - 10 bar
Port Orifice Kv Value Seal material Item no.
[inch] [mm] [m /h] 24V AC&DC 230V AC&DC
3
Brass
G 1/2 13 4 NBR 138 171 138 173
ATEX Select
G 3/4 20 5 NBR 138 174 138 176

G 1 25 10 NBR 138 177 138 179

G 1 1/2 40 20 NBR 138 183 138 185
G 2 50 40 NBR 138 186 138 188

Stainless steel
G 1/2 20 5 FKM 138 228 138 230

G 3/4 20 5 FKM 138 231 138 233

G 1 25 10 FKM 138 234 138 236
G 1 1/2 40 20 FKM 138 240 138 242

G 2 50 40 FKM 138 243 138 245

Envelope Dimensions [mm] (see datasheet for details)
Version with terminal box Version with molded cable

DN D B1 E1 F L1 H1 H2
13 G 1/2 123.0 40 14 65 180.0 123.0
20 G 1/2 131.0 60 14 100 188.0 131.0
20 G 3/4 131.0 60 16 100 188.0 131.0
25 G 1 141.0 70 18 115 198.0 141.0
32 G 1 1/4 147.0 85 20 126 204.0 147.0
40 G 1 1/2 156.0 85 22 126 213.0 156.0
50 G 2 177.5 115 24 164 234.5 177.5
65 G 2 1/2 185.0 115 27 180 242.0 185.0

109
