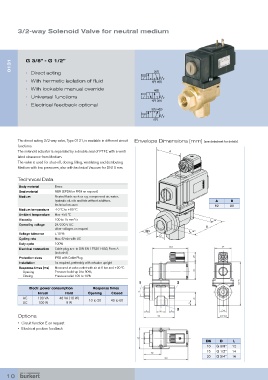

Page 11 - Bürkert

3/2-way Solenoid Valve for neutral medium

0131 G 3/8” - G 1/2”

• Direct acting 2(A)
• With hermetic isolation of fluid 1(P) 3(R)
• With lockable manual override 4(B)
• Universal functions
1(P) 3(R)
• Electrical feedback optional
2(A) 4(B)

1(P)

The direct acting 3/2-way valve, Type 0131, is available in different circuit Envelope Dimensions [mm] (see datasheet for details)
functions.
The solenoid actuator is separated by a double seal of PTFE with a venti- A
lated clearance from Medium.
The valve is used for shut-off, dosing, filling, ventilating and distributing
Medium with low pressures; also with technical Vacuum for DN10 mm.

Technical Data
Body material Brass
Seal material NBR (EPDM or FKM on request)
Medium Neutral fluids such as e.g. compressed air, water,
hydraulic oil, oils and fats without additives, A B
technical vacuum 62 90
Medium temperature -10 ºC to +80 ºC
Ambient temperature Max +50 ºC
Viscosity 100 to 15 mm /s L
2
Operating voltage 24/230 V UC B
other voltages on request
DN L
Voltage tolerance ±10 %
D
Cycling rate Max. 6/min with UC
Duty cycle 100%
Electrical connection Cable plug acc. to DIN EN 175301-803, Form A
(included)
Protection class IP65 with Cable Plug
Installation As required, preferably with actuator upright
Response times [ms] Measured at valve outlet with air at 6 bar and +20 ºC
Opening Pressure build-up 0 to 90%,
Closing Pressure relief 100 to 10%
1 2
Electr. power consumption Response times
Inrush Hold Opening Closed
AC 100 VA 48 VA (16 W) 10 to 20 40 to 60
UC 100 W 9 W
3
Options
• Circuit function E on request
• Electrical position feedback

DN D L
10 G 3/8” 12
15 G 1/2” 14
20 G 3/4” 16

10
