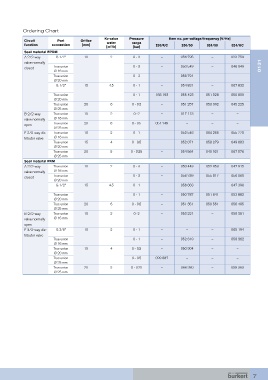

Ordering Chart
Kv value Pressure Item no. per voltage/frequency [V/Hz]
Circuit Port Orifice water range
function connection [mm] 230/UC 230/50 024/50 024/UC
[m /h] [bar]
3
Seal material EPDM
A 2/2-way G 1/2” 10 2 0 - 3 – 056 795 – 023 759
valve normally
closed True union 0 - 3 – 050 549 – 046 949 0131
Ø 16 mm
True union 0 - 3 – 056 791 – –
Ø 20 mm
G 1/2” 15 4.5 0 - 1 – 054 831 – 067 832

True union 0 - 1 168 193 055 423 051 028 050 809
Ø 20 mm
True union 20 6 0 - 0.5 – 051 257 053 992 045 225
Ø 25 mm
B 2/2-way True union 10 2 0- 2 – 017 113 – –
valve normally Ø 16 mm
open True union 20 6 0 - 0.5 051 748 – – –
Ø 25 mm
F 3/2-way dis- True union 10 2 0 - 1 – 052 546 064 266 055 770
tributor valve Ø 16 mm
True union 15 4 0 - 0.5 – 052 071 058 279 049 883
Ø 20 mm
True union 20 5 0 - 0.25 – 054 564 040 921 067 076
Ø 25 mm
Seal material FKM
A 2/2-way True union 10 2 0 - 3 – 050 443 052 953 047 915
valve normally Ø 16 mm
closed True union 0 - 3 – 056 789 055 817 056 060
Ø 20 mm
G 1/2” 15 4.5 0 - 1 – 056 663 – 047 398
True union 0 - 1 – 050 787 051 641 053 882
Ø 20 mm
True union 20 6 0 - 0.5 – 051 351 050 551 056 495
Ø 25 mm
B 2/2-way True union 10 2 0- 2 – 053 221 – 058 361
valve normally Ø 16 mm
open
F 3/2-way dis- G 3/8” 10 2 0 - 1 – – – 065 194
tributor valve
True union 0 - 1 – 052 619 – 058 362
Ø 16 mm
True union 15 4 0 - 0.5 – 050 904 – –
Ø 20 mm
True union 0 - 0.5 020 687 – – –
Ø 25 mm
True union 20 5 0 - 0.25 – 066 280 – 058 363
Ø 25 mm

7
