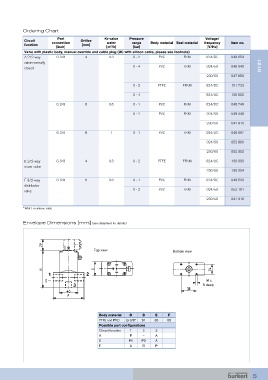

Ordering Chart
Port Kv value Pressure Voltage/
Circuit connection Orifice water range Body material Seal material frequency Item no.
function [mm]
[inch] [m /h] [bar] [V/Hz]
3
Valve with plastic body, manual override and cable plug (UC with silicon cable, please see footnote)
A 2/2-way G 3/8 4 0.3 0 - 2 PVC FKM 024/DC 049 654
valve normally
closed 0 - 4 PVC FKM 024/50 048 940 0121
230/50 047 859
0 - 2 PTFE FFKM 024/DC 151 733
0 - 4 024/UC 130 502
G 3/8 6 0.6 0 - 1 PVC FKM 024/DC 048 749
0 - 2 PVC FKM 024/50 049 348
230/50 047 810
G 3/8 8 1 0 - 1 PVC FKM 024/UC 048 697
024/50 052 800
230/50 052 302
E 3/2-way G 3/8 4 0.3 0 - 2 PTFE FFKM 024/UC 130 933
mixer valve
230/50 130 934
F 3/2-way G 3/8 6 0.6 0 - 1 PVC FKM 024/DC 049 533
distributor
0 - 2 PVC FKM 024/50 052 181
valve
230/50 047 916
* With 1 m silicone cable
Envelope Dimensions [mm] (see datasheet for details)
Top view Bottom view
5 deep
Body material D B E F
PTFE and PVC G 3/8” 91 35 65
Possible port configurations
Circuit function 1 2 3
A P – A
E P1 P2 A
F A B P
