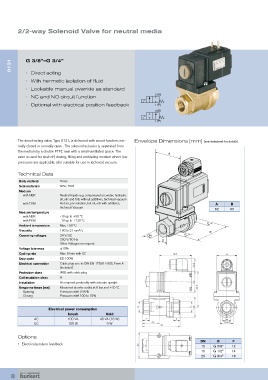

2/2-way Solenoid Valve for neutral media

0131 G 3/8”–G 3/4”

• Direct acting
• With hermetic isolation of fluid
• Lockable manual override as standard
• NC and NO circuit function 2 (A)
• Optional with electrical position feedback 1 (P)
4 (B)

1 (P)

The direct-acting valve, Type 0131, is delivered with circuit function, nor- Envelope Dimensions [mm] (see datasheet for details)
mally closed or normally open . The solenoid actuator is separated from
the medium by a double PTFE seal with a small ventilated space. The
A
valve is used for shut-off, dosing, filling and ventilating medium where low
pressures are applicable; also suitable for use in technical vacuum.

Technical Data
Body material Brass
Seal materials NBR, FKM
Medium
with NBR Neutral liquids e.g. compressed air, water, hydraulic
oil, oils and fats without additives, technical vacuum
with FKM Hot air, per-solution, hot oil, oils with additives, A B
technical Vacuum 62 90
Medium temperature
with NBR -10 up to +90 ºC
with FKM -10 up to +130 ºC
Ambient temperature Max. +50 ºC F
Viscosity 100 to 21 mm /s B
2
Operating voltages 24 V/UC DN F
230 V/50 Hz D
Other Voltages on request
Voltage tolerance ±10%
Cycling rate Max. 6/min with UC
Duty cycle ED 100%
Electrical connection Cable plug acc. to DIN EN 175301-803, Form A
(included)
Protection class IP65 with cable plug
Coil insulation class H
Installation As required, preferably with actuator upright
Response times [ms]: Measured at valve outlet at 6 bar and +20 ºC.
Opening Pressure relief 0 90%
Closing Pressure relief 100 to 10%

Electrical power consumption
Inrush Hold
AC 100 VA 48 VA (16 W)
UC 100 W 9 W

Options
DN D F
• Electrical position feedback
10 G 3/8” 12
15 G 1/2” 14
20 G 3/4” 16

8
