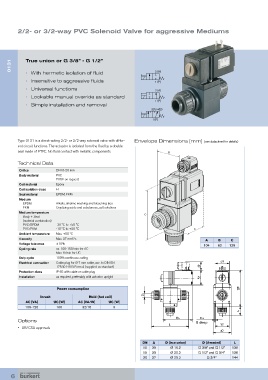

2/2- or 3/2-way PVC Solenoid Valve for aggressive Mediums

0131 True union or G 3/8” - G 1/2”

• With hermetic isolation of fluid 2 (A)
• Insensitive to aggressive fluids 1 (P)
• Universal functions 2 (A)
• Lockable manual override as standard
1 (P)
• Simple installation and removal
2(A) 4(B)

1(P)

Type 0131 is a direct-acting 2/2- or 3/2-way solenoid valve with differ- Envelope Dimensions [mm] (see datasheet for details)
ent circuit functions. The actuator is isolated from the fluid by a double
seal made of PTFE. No fluid contact with metallic components. B

Technical Data

Orifice DN10-20 mm
Body material PVC
PVDF on request
Coil material Epoxy
Coil isolation class H
Seal material EPDM, FKM
Medium
EPDM Alkalis, alkaline washing and bleaching lyes
FKM Oxydizing acids and substances, salt solutions
Medium temperature C
Body + Seal
(material combination)
PVC/EPDM -30 °C to +50 °C
PVC/FKM -10 °C to +50 °C A
Ambient temperature Max. +50 °C
Viscosity Max. 37 mm /s
2
A B C
Voltage tolerance ±10%
104 62 129
Cycling rate ca. 100-150/min for AC
Max. 6/min for UC
Duty cycle 100% continuous rating
Electrical connection Cable plug for Ø 7 mm cable, acc. to DIN EN
175301-803 Form A (supplied as standard)
Protection class IP 65 with cable or cable plug
Installation as required, preferably with actuator upright
Power consumption

Inrush Hold (hot coil)
AC [VA] UC [W] AC [VA/W] UC [W]
100-120 100 32/16 9

Options 8 deep
• UR/CSA approvals

DN A D (true union) D (threaded) L
10 30 Ø 16.2 G 3/8” and G 1/2” 130
15 33 Ø 20.2 G 1/2” and G 3/4” 136
20 37 Ø 25.2 G 3/4” 144

6
