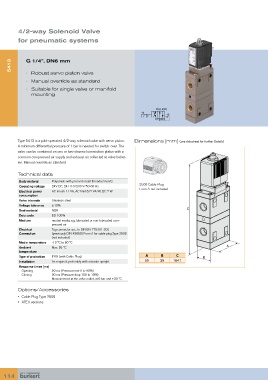

4/2-way Solenoid Valve
for pneumatic systems

5413 G 1/4”, DN6 mm

• Robust servo piston valve
• Manual override as standard
• Suitable for single valve or manifold
mounting

2(A) 4(B)
14
12
1(P) 3(R)

Type 5413 is a pilot-operated 4/2-way solenoid valve with servo piston. Dimensions [mm] (see datasheet for further Details)
A minimum differential pressure of 1 bar is needed for switch-over. The
valve can be combined on one or two-channel connection plates with a
common compressed air supply and exhaust air collected at valve batter-
ies. Manual override as standard

Technical data
Body material Polyamide with pressed metal threaded inserts
Operating voltage 24V DC, 24/110/230 V/50-60 Hz 2508 Cable Plug
Form A not included
Electrical power AC inrush 11 VA, AC hold 6/2 VA/W, DC 2 W
consumption
Valve internals Stainless steel
Voltage tolerance ±10%
Seal material NBR C
Duty cycle ED 100%
Medium neutral media, e.g. lubricated or non-lubricated com-
pressed air
Electrical Tag connector acc. to DIN EN 175301-803
Connection (previously DIN 43650) Form A for cable plug,Type 2508
(not included)
Media temperature -10 °C to 60 °C
Ambient Max. 55 °C A
temperature
Type of protection IP65 (with Cable Plug) A B C B
Installation As required, preferably with actuator upright 55 30 164.1
Response times [ms]
Opening 50 ms (Pressure rise 0 to 90%)
Closing 30 ms (Pressure drop 100 to 10%)
Measurement at the valve outlet, at 6 bar and +20 °C

Options/Accessories
• Cable Plug Type 2508
• ATEX versions
