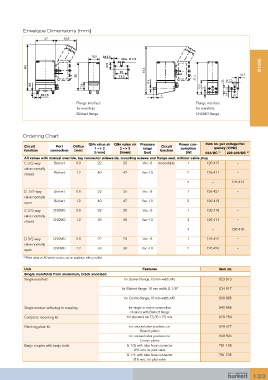

Envelope Dimensions [mm]

6106

Flange interface Flange interface
for manifold, for manifold,
Bürkert flange CNOMO flange

Ordering Chart
QNn value air QNn value air Pressure Power con- Item no. per voltage/fre-
Circuit Port Orifice 1 –> 2 2 –> 3 range Circuit sumption quency [V/Hz]
function connection [mm] function
[l/min] [l/min] [bar] [W] 024/DC 1) 220-240/DC 1)
All valves with manual override, tag connector sidewards, mounting screws and flange seal, without cable plug
C 3/2-way Bürkert 0.9 22 25 Vac.- 8 monostable 1 126 417 –
valve normally
closed Bürkert 1.2 40 47 Vac.-10 2 126 411 –
3 – 126 413
D 3/2-way Bürkert 0.9 22 25 Vac.- 8 1 126 421 –
valve normally
open Bürkert 1.2 40 47 Vac.-10 2 126 419 –
C 3/2-way CNOMO 0.9 22 25 Vac.- 8 1 126 418 –
valve normally
closed CNOMO 1.2 33 38 Vac.-10 2 126 414 –
3 – 126 416

D 3/2-way CNOMO 0.9 22 25 Vac.- 8 1 126 422 –
valve normally
open CNOMO 1.2 33 38 Vac.-10 2 126 420 –
1) When using an AC power source, use an appliance with a rectifier.

Unit Features Item no.
Single manifolds from aluminium, black anodised
Single manifold for Bürkert flange, 16 mm width, M5 623 873
for Bürkert flange, 16 mm width, G 1/8” 634 917

for Cnomo flange, 16 mm width, M5 639 885

Single module with plug-in coupling for single or series connection 643 566
of valves with Bürkert flange
Complete mounting kit for standard rail TS 35 x 7.5 mm 629 254

Blanking plate kit for unused valve positions on 629 327
Bürkert plates
for unused valve positions on 639 695
Cnomo plates
Banjo coupler with banjo bolts G 1/8, with tube hose connector 781 126
Ø 6 mm, for pilot valve
G 1/4, with tube hose connector 781 735
Ø 6 mm, for pilot valve
