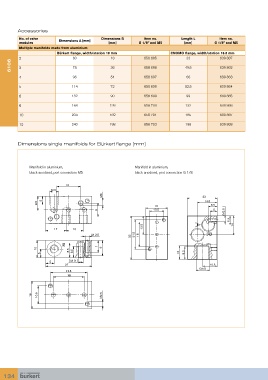

P. 135
Accessories
No. of valve Dimensions B Item no. Length L Item no.
modules Dimensions A [mm] [mm] G 1/8” and M5 [mm] G 1/8” and M5
Multiple manifolds made from aluminium
Bürkert flange, width/station 18 mm CNOMO flange, width/station 16.5 mm
2 60 18 658 695 33 639 887
6106 3 78 36 658 696 49.5 639 862
4 96 54 658 697 66 639 863
5 114 72 658 698 82.5 639 864
6 132 90 658 699 99 639 865
8 168 126 658 700 132 639 866
10 204 162 658 701 165 639 867
12 240 198 658 703 198 639 868
Dimensions single manifolds for Bürkert flange [mm]
Manifold in aluminium, Manifold in aluminium,
black anodised, port connection M5 black anodised, port connection G 1/8
14
M 5
M3 22
5 14.5
8.5
16 6.5
M2.5
8 10.5 5
6.5
13.5 14
12 10
M 2.5 21.5 18
32
7
10 8.5 6.5 9
5 10 9.2
5 M 3
27 10.5
G1/8
21.5
18
16 10.5 M2.5
134
