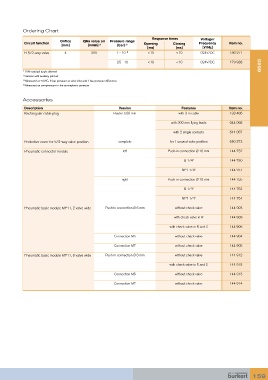

Ordering Chart
Response times Voltage/
Orifice QNn value air Pressure range
Circuit function Opening Closing Frequency Item no.
[mm] [l/min] 2) [bar] 3)
[ms] [ms] [V/Hz]
H 5/2-way valve 4 300 1 - 10 1) <10 <10 024V/DC 186 271
6525
2.5 - 10 <10 <10 024V/DC 179 938
* 10% residual ripple allowed
1) Version with auxiliary pilot air
2) Measured at +20°C, 6 bar pressure at valve inlet and 1 bar pressure difference
3) Measured as overpressure to the atmospheric pressure

Accessories
Description Version Features Item no.
Rectangular cable plug Raster 5.08 mm with 3 m cable 133 486
with 300 mm flying leads 644 068

with 2 single contacts 644 067

Protective cover for 5/2-way valve position complete for 1 unused valve position 650 373
Pneumatic connector module left Push-in connection Ø 10 mm 144 752

G 1/4” 144 750
NPT 1/4” 144 751

right Push-in connection Ø 10 mm 144 755

G 1/4” 144 753
NPT 1/4” 144 754

Pneumatic basic module MP11, 2 valve wide Push-in connection Ø 6 mm without check valve 144 903

with check valve in R 144 909
with check valve in R and S 144 906

Connection M5 without check valve 144 904

Connection M7 without check valve 144 905
Pneumatic basic module MP11, 8 valve wide Push-in connection Ø 6 mm without check valve 144 912

with check valve in R and S 144 915
Connection M5 without check valve 144 913

Connection M7 without check valve 144 914

159
