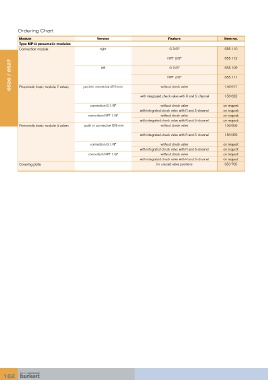

Ordering Chart
Module Version Feature Item no.
Type MP12 pneumatic modules
Connection module right G 3/8” 655 110

NPT 3/8” 655 112
6526 / 6527 left NPT 3/8” 655 109
G 3/8”

655 111

without check valve
push-in connection Ø 8 mm
Pneumatic basic module 2 valves
with integrated check valve with R and S-channel 156 617
156 632
connection G 1/8” without check valve on request
with integrated check valve with R and S-channel on request
connection NPT 1/8” without check valve on request
with integrated check valve with R and S-channel on request
Pneumatic basic module 4 valves push-in connection Ø 8 mm without check valve 156 656

with integrated check valve with R and S-channel 156 659
connection G 1/8” without check valve on request
with integrated check valve with R and S-channel on request
connection NPT 1/8” without check valve on request
with integrated check valve with R and S-channel on request
Covering plate for unused valve positions 653 765
