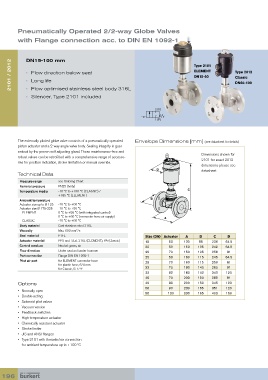

Pneumatically Operated 2/2-way Globe Valves
with Flange connection acc. to DIN EN 1092-1

2101 / 2012 DN15-100 mm Type 2101 Type 2012

ELEMENT
• Flow direction below seat
DN15-50
Classic
• Long life
DN65-100
• Flow optimised stainless steel body 316L
• Silencer, Type 2101 included

2 (A)

1 (P)

The externally piloted globe valve consists of a pneumatically operated Envelope Dimensions [mm] (see datasheet for details)
piston actuator and a 2-way angle valve body. Sealing integrity is guar-
anteed by the proven self adjusting gland. These maintenance-free and Dimensions shown for
robust valves can be retrofitted with a comprehensive range of accesso- 2101 for exact 2012
ries for position indication, stroke limitation or manual override.
dimensions please see
D datasheet
Technical Data
Pressure range see Ordering Chart
Nominal pressure PN25 (body)
C
Temperature media -10 °C to +180 °C (CLASSIC) /
+185 °C (ELEMENT)
Ambient temperature B
Actuator size up to Ø 125 -10 °C to +60 °C
Actuator size Ø 175-225 -10 °C to +50 °C
ELEMENT 0 °C to +55 °C (with integrated control)
0 °C to +60 °C (connector hose air supply) A
CLASSIC -10 °C to +60 °C
Body material Cast stainless steel 316L
2
Viscosity Max. 600 mm /s
Seal material PTFE Size (DN) Actuator A B C D
Actuator material PPS and St.st. 316L (ELEMENT), PA (Classic) 15 50 130 95 236 64.5
Control medium Neutral gases, air 20 50 150 105 242 64.5
Flow direction Under seat anti water-hammer 20 70 150 105 256 91
Port connection Flange DIN EN 1092-1 25 50 160 115 245 64.5
Pilot air port for ELEMENT connector hose 25 70 160 115 259 91
for plastic hose, 6/4 mm
for Classic, G 1/4” 32 70 180 140 280 91
32 90 180 140 340 120
40 70 200 150 285 91
Options 40 90 200 150 345 120
50 90 230 165 351 120
• Normally open 50 130 230 165 403 159
• Double acting
• Solenoid pilot valves
• Vacuum version
• Feedback switches
• High temperature actuator
• Chemically resistant actuator
• Stroke limiter
• JIS and ANSI flanges
• Type 2101 with threaded air connection
for ambient temperature up to +100 °C
