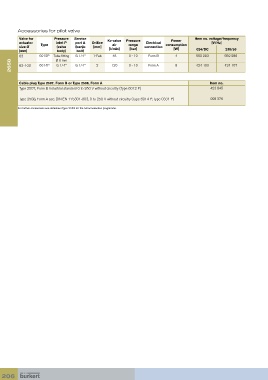

Accessories for pilot valve
Valve for Pressure Service Item no. voltage/frequency
actuator inlet P port A Orifice Kv value Pressure Electrical Power [V/Hz]
size Ø Type (valve (banjo [mm] air range connection consumption
[mm] body) bolt) [l/min] [bar] [W] 024/DC 230/50
63 6012P Tube fitting G 1/4" 1-Feb 48 0 - 10 Form B 4 552 283 552 286
Ø 6 mm
2658 63-100 6014P G 1/4" G 1/4" 2 120 0 - 10 Form A 8 424 103 424 107

Cable plug Type 2507, Form B or Type 2508, Form A Item no.
Type 2507, Form B Industrial standard 0 to 250 V without circuitry (Type 6012 P) 423 845

Type 2508, Form A acc. DIN EN 175301-803, 0 to 250 V without circuitry (Type 6014 P, Type 0331 P) 008 376

For further accessories see datasheet Type 2XXX for the full accessories programme.
