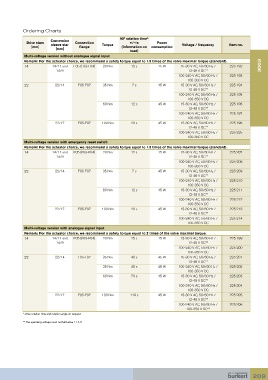

Ordering Charts
90° rotation time*
Conversion
Drive stars Connection +/-1s Power
[mm] sleeve star flange Torque (Information on consumption Voltage / frequency Item no.
[mm]
load)
Multi-voltage version without analogue signal input
Remark: For the actuator choice, we recommend a safety torque equal to 1.5 times of the valve maximal torque (standard).
14 14/11 and F05 (F03-F04) 20 Nm 12 s 15 W 15-30 V AC, 50/60 Hz / 225 192 3003
14/9 12-48 V DC**
100-240 V AC, 50/60 Hz / 225 193
100-350 V DC
22 22/14 F05-F07 35 Nm 7 s 45 W 15-30 V AC, 50/60 Hz / 225 194
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 195
100-350 V DC
60 Nm 12 s 45 W 15-30 V AC, 50/60 Hz / 225 196
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 197
100-350 V DC
22/17 F05-F07 100 Nm 23 s 45 W 15-30 V AC, 50/60 Hz / 225 198
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 225
100-350 V DC
Multi-voltage version with emergency reset switch
Remark: For the actuator choice, we recommend a safety torque equal to 1.5 times of the valve maximal torque (standard).
14 14/11 and F05 (F03-F04) 20 Nm 12 s 15 W 15-30 V AC, 50/60 Hz / 225 207
14/9 12-48 V DC**
100-240 V AC, 50/60 Hz / 225 208
100-350 V DC
22 22/14 F05-F07 35 Nm 7 s 45 W 15-30 V AC, 50/60 Hz / 225 209
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 210
100-350 V DC
80 Nm 12 s 45 W 15-30 V AC, 50/60 Hz / 225 211
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 212
100-350 V DC
22/17 F05-F07 100 Nm 23 s 45 W 15-30 V AC, 50/60 Hz / 225 213
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 214
100-350 V DC
Multi-voltage version with analogue signal input
Remark: For the actuator choice, we recommend a safety torque equal to 2 times of the valve maximal torque.
14 14/11 and F05 (F03-F04) 20 Nm 25 s 15 W 15-30 V AC, 50/60 Hz / 225 199
14/9 12-48 V DC**
100-240 V AC, 50/60 Hz / 225 200
100-350 V DC
22 22/14 F05-F07 35 Nm 40 s 45 W 15-30 V AC, 50/60 Hz / 225 201
12-48 V DC**
35 Nm 40 s 45 W 100-240 V AC, 50/60 Hz / 225 202
100-350 V DC
60 Nm 79 s 45 W 15-30 V AC, 50/60 Hz / 225 203
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 204
100-350 V DC
22/17 F05-F07 100 Nm 119 s 45 W 15-30 V AC, 50/60 Hz / 225 205
12-48 V DC**
100-240 V AC, 50/60 Hz / 225 206
100-350 V DC**
* other rotation time and rotation angle on request

** The operating voltage must not fall below 11.5 V
