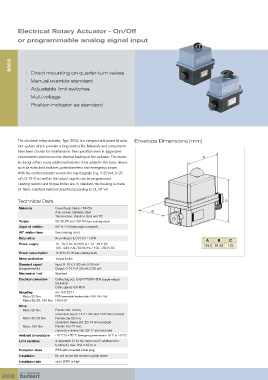

Electrical Rotary Actuator - On/Off
or programmable analog signal input

3003

• Direct mounting on quarter-turn valves
• Manual override standard
• Adjustable limit switches
• Multi-voltage
• Position indicator as standard

The electrical rotary actuator, Type 3003, is a compact and powerful actu- Envelope Dimensions [mm]
ator system which provides a long service life. Materials and components
have been chosen for maintenance-free operation even in aggressive
environments and ensure low thermal loading on the actuator. The modu- A
lar design offers many additional features to be added to the basic device
such as extra limit switches, potentiometers and emergency power.
With the control actuator version the input signals (e.g. 4-20 mA, 0-20
mA, 0-10 V) as well as the output signals can be programmed.
Heating resistor and torque limiter are in standard, the housing is made
of flame resistant material classified according to UL 94 V0

Technical Data C
Materials Cover/body: Nylon / PA 6.6,
Axis screws: stainless steel B
Transmission: stainless steel and PC
Torque 20, 35, 60 and 100 Nm (see ordering chart)
Angle of rotation 90° (+/- 5°) (extra angle on request)
90° rotation time See ordering chart
Duty rating According to IEC34 S4 = 50%
A B C
Power supply 15 - 30 V AC 50/60 Hz / 12 - 48 V DC 136.3 91.83 123
100 - 240 V AC 50/60 Hz / 100 - 350 V DC
Power consumption 15 W to 45 W (see ordering chart)
Motor protection Torque limiter
Standard signal Input: 0-10 V, 4-20 mA, 0-20 mA
(programmable) Output: 0-10 V, 4-20 mA, 0-20 mA
Mechanical limit Standard
Electrical connection Cable plug acc. to EN175301-803 (supply voltage)
(included)
Cable glands ISO M20
Mounting acc. ISO 5211
Motor 20 Nm F05 (removable fixation plate F03/F04/F05)
Motor 35, 60, 100 Nm F05/F07
Drive
Motor 20 Nm Female star 14 mm;
conversion sleeve 14/11 mm and 14/9 mm enclosed
Motor 35, 60 Nm Female star 22 mm;
conversion sleeve star 22/14 mm enclosed
Motor 100 Nm Female star 22 mm;
conversion sleeve star 22/17 mm enclosed
Ambient temperature -10 °C to +55 °C (emergency power version -10 °C to +40 °C)
Limit switches 4 adjustable (2 for the motor and 2 additional for
feedback), max. 250 V AC/5 A
Protection class IP66 with mounted cable plug
Installation Do not mount the actuator upside down!
Installation site up to 2000 m high
