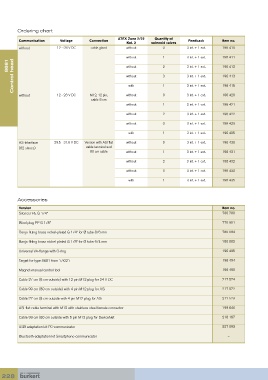

Ordering chart
ATEX Zone 2/22 Quantity of
Communication Voltage Connection Feedback Item no.
Kat. 3 solenoid valves
without 12 - 28 V DC cable gland without 0 3 int. + 1 ext. 196 410
without 1 3 int. + 1 ext. 196 411
8681 without 2 3 int. + 1 ext. 196 412
Control head without 3 1 3 int. + 1 ext. 196 413

3 int. + 1 ext.
with
196 415
without 12 - 28 V DC M12, 12 pin, without 0 3 int. + 1 ext. 196 420
cable 8 cm
without 1 3 int. + 1 ext. 196 421

without 2 3 int. + 1 ext. 196 422

without 3 3 int. + 1 ext. 196 423
with 1 3 int. + 1 ext. 196 425

AS-Interface 29.5 - 31.6 V DC Version with ASI flat without 0 3 int. + 1 ext. 196 430
(62 slaves) cable terminal and
80 cm cable without 1 3 int. + 1 ext. 196 431

without 2 3 int. + 1 ext. 196 432

without 3 3 int. + 1 ext. 196 433
with 1 3 int. + 1 ext. 196 435

Accessories
Version Item no.
Silencer PE G 1/4” 780 780

Blind plug PP G 1/8” 770 901

Banjo fitting brass nickel-plated G 1/4” for Ø tube 8/6 mm 780 084
Banjo fitting brass nickel-plated G 1/8” for Ø tube 6/4 mm 780 082

Universal VA-flange with O-ring 196 495

Target for type 8681 from 1.4021 196 494
Magnet-manual control tool 196 490

Cable 27 cm (8 cm outside) with 12 pin M12 plug for 24 V DC 217 574

Cable 99 cm (80 cm outside) with 4 pin M12 plug for ASi 217 572
Cable 27 cm (8 cm outside with 4 pin M12 plug for ASi 217 573

ASI-flat cable terminal with M12 with stainless steel female connector 799 646
Cable 99 cm (80 cm outside with 5 pin M12 plug for DeviceNet 218 187

USB adaptation kit PC-communicator 227 093
Bluetooth-adaptation kit Smartphone-communicator –
