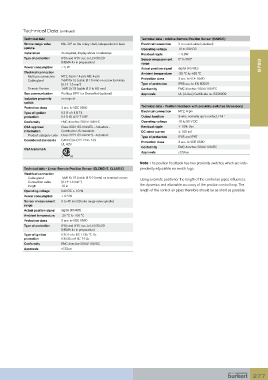

Technical Data (continued)
Technical data Technical data - rotative Remote Position Sensor (NAMUR)
Stroke range valve Min. 30º on the rotary shaft, independent of lever Electrical connection 2 m round cable (shielded)
spindle Operating voltage 10 to 30V DC
Installation As required, display above or sideways Residual ripple < 0.8W
Type of protection IP65 and IP67 acc. to EN 60529 Sensor measurement 0º to 360º
(NEMA 4x in preparation) range
Power consumption < 5 W Actual position signal digital (RS485) 8793
Electrical connection Ambient temperature -25 ºC to +80 ºC
Multi-pin connection M12, 8-pin / 4-pin; M8, 4-pin
Cable gland 2xM20x1.5 (cable Ø 10 mm) on screw terminals Protection class 3 acc. to VDE 0580
(0.14-1.5 mm ) Type of protection IP65 acc. to EN 60529
2
Remote Version 1xM12x1.5 (cable Ø 3 to 6.5 mm) Conformity EMC directive 2004/108/EC
Bus communication Profibus DPV1 or DeviceNet (optional) Approvals UL (cULus) Certificate no. E226909
Inductive proximity on request
switch
Protection class 3 acc. to VDE 0580 Technical data - Position feedback with proximity switches (Accessory)
Electrical connection M12, 4-pin
Type of ignition II 3 G nA II B T4
protection II 3 D tD A22 T135° Output function 3-wire, normally open contact, PNP
Conformity EMC directive 2004/108/EC Operating voltage 10 to 30 V DC
CSA approval Class 3221 82-VALVES - Actuators - Residual ripple ≤ 10% Uss
information Certified to US standards DC rated current ≤ 100 mA
Product category code Class 3221 02-VALVES - Actuators Type of protection IP65 and IP67
Considered standards CAN/CSA-C22 2 No. 139 Protection class 3 acc. to VDE 0580
UL 429
CSA trademark Conformity EMC directive 2004/108/EC
Approvals cCSAus
C US
Note: The position feedback has two proximity switches which are inde-
Technical data - Linear Remote Position Sensor (ELEMENT, CLASSIC) pendently adjustable via switch lugs.
Electrical connection
Cable gland 1xM16x1.5 (cable Ø 5-10 mm) on terminal screws Using a remote positioner the length of the control air pipes influences
Connection cable (0.14-1.5 mm² )
length 10 m the dynamics and attainable accuracy of the position control loop. The
Operating voltage 24V DC ± 10 % length of the control air pipes therefore should be as short as possible.
Power consumption < 0.3 W
Sensor measurement 3 to 45 mm (Stroke range valve spindle)
range
Actual position signal digital (RS485)
Ambient temperature -25 °C to +80 °C
Protection class 3 acc. to VDE 0580
Type of protection IP65 and IP67 acc. to EN 60529
(NEMA 4x in preparation)
Type of Ignition II 3D Ex tc IIIC T135 ºC Dc
protection II 3G Ex nA IIC T4 Gc
Conformity EMC directive 2004/108/EC
Approvals cCSAus
