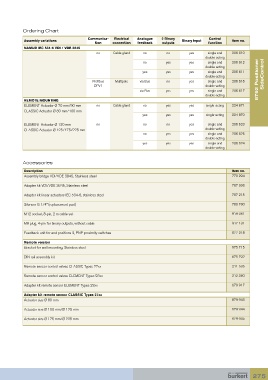

Ordering Chart
Communica- Electrical Analogue 2 Binary Control
Assembly variations Binary input Item no.
tion connection feedback outputs function
NAMUR IEC 534-6 VDI / VDE 3845
no Cable gland no no yes single and 206 610
double-acting
no yes yes single and 206 612
double-acting
yes yes yes single and 206 611 SideControl
double-acting
Profibus Multipole via Bus no yes single and 206 616 8792 Positioner
DPV1 double-acting
via Bus yes yes single and 206 617
double-acting
REMOTE MOUNTING
ELEMENT Actuator Ø 70 mm/90 mm no Cable gland no yes yes single-acting 224 871
CLASSIC Actuator Ø 80 mm/100 mm
yes yes yes single-acting 224 870

ELEMENT Actuator Ø 130 mm no no no yes single and 206 623
CLASSIC Actuator Ø 125/175/225 mm double-acting
no yes yes single and 206 625
double-acting
yes yes yes single and 206 624
double-acting

Accessories

Description Item no.
Assembly bridge VDI/VDE 3845, Stainless steel 770 294

Adapter kit VDI/VDE 3845, Stainless steel 787 338
Adapter kit linear actuators IEC 534-6, stainless steel 787 215

Silencer G 1/4” (replacement part) 780 780

M12 socket, 8-pin, 2 m cable set 919 061
M8 plug, 4-pin for binary outputs, without cable 917 131

Feedback unit for end positions 2, PNP proximity switches 677 218
Remote version
Bracket for wall mounting, Stainless steel 675 715

DIN rail assembly kit 675 702
Remote sensor control valves CLASSIC Types 27xx 211 535

Remote sensor control valves ELEMENT Types 23xx 212 360
Adapter kit remote sensor ELEMENT Types 23xx 679 917

Adapter kit remote sensor CLASSIC Types 27xx
Actuator size Ø 80 mm 679 943

Actuator size Ø 100 mm/Ø 125 mm 679 944

Actuator size Ø 175 mm/Ø 225 mm 679 945
