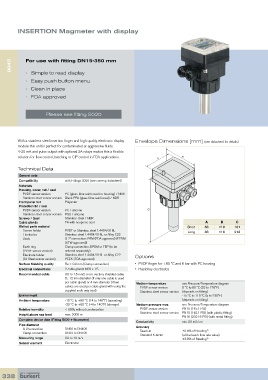

INSERTION Magmeter with display

8045 For use with fitting DN15-350 mm

• Simple to read display
• Easy push button menu
• Clean in place
• FDA approved

Please see fitting S020

With a stainless steel insertion finger and high quality electronic display Envelope Dimensions [mm] (see datasheet for details)
module this unit is perfect for contaminated or aggressive fluids.
4-20 mA and pulse output with optional 3A relays makes this a flexible
solution for flow control, batching or CIP control in FDA applications. A B

Technical Data
General data
Compatibility with Fittings S020 (see corresp. datasheet)
Materials
Housing, cover, nut / seal
PVDF sensor version PC (glass fibre reinforced for housing) / NBR
Stainless steel sensor version Black PPA (glass fibre reinforced) / NBR
Front panel foil Polyester
Protection lid / seal
PVDF sensor version PC / silicone C
Stainless steel sensor version PSU / silicone
Screws / Seal Stainless steel / NBR
Cable glands PA with neoprene seal A B C
Wetted parts material Short 88 116 181
Sensor holder PVDF or Stainless steel 1.4404/316L Long 88 116 218
Electrodes Stainless steel 1.4404/316L or Alloy C22
Seals G 2” connection: FKM (FDA approved) [EPDM
(KTW approved)]
Earth ring Clamp connection: EPDM or FEP (to be
(PVDF sensor version) ordered separately)
Electrode holder Stainless steel 1.4404/316L or Alloy C22 Options
(St. Steel sensor version) PEEK (FDA approved)
Surface finishing quality Ra < 0.8 mm (Clamp connection) • PVDF finger for +80 ºC and 6 bar with PC housing
Electrical connections 2 cable glands M20 x 1.5 • Hastelloy electrodes
Recommended cable 0.5 to 1.5 mm2 cross-section, shielded cable,
6... 12 mm diameter (if only one cable is used
per cable gland) or 4 mm diameter (if two Medium temperature see Pressure/Temperature diagram
cables are used per cable gland with using the PVDF sensor version 0 °C to 80 °C (32 to 176°F)
supplied multi-way seal) Stainless steel sensor version (depends on fitting)
Environment -15 °C to 110 °C (5 to 230°F)
Ambient temperature -10 °C to +60 °C (14 to 140°F) (operating) (depends on fitting)
-20 °C to +60 °C (-4 to 140°F) (storage) Medium pressure max. see Pressure/Temperature diagram
Relative humidity < 85%, without condensation PVDF sensor version PN10 (145.1 PSI)
Stainless steel sensor version PN10 (145.1 PSI) (with plastic fitting)
Height above sea level max. 2000 m
PN16 (232.16 PSI) (with metal fitting)
Complete device data (Fitting S020 + flowmeter) Conductivity min. 20 mS/cm
Pipe diameter Accuracy
G 2”connection DN06 to DN400 Teach-In ±0.5% of Reading
1)
Clamp connection DN32 to DN100 Standard K-factor (at the teach flow rate value)
Measuring range 0.2 to 10 m/s ±3.5% of Reading 1)
Sensor element Electrodes
