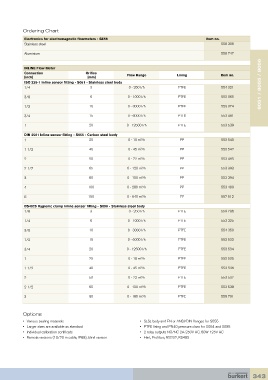

Ordering Chart
Electronics for electromagnetic flowmeters - SE56 Item no.
Stainless steel 558 306
Aluminium 558 747

INLINE Flow Meter
Connection Orifice
[inch] [mm] Flow Range Lining Item no.
ISO 228-1 Inline sensor fitting - S051 - Stainless steel body 8051 / 8055 / 8056
1/4 3 0 - 250 l/h PTFE 554 321
3/8 6 0 - 1000 l/h PTFE 553 065

1/2 10 0 - 3000 l/h PTFE 553 374

3/4 15 0 - 6000 l/h PTFE 553 481
1 20 0 - 12500 l/h PTFE 553 539

DIN 2501 Inline sensor fitting - S055 - Carbon steel body
1 25 0 - 18 m /h PP 553 540
3
1 1/2 40 0 - 45 m /h PP 553 542
3
2 50 0 - 72 m /h PP 553 485
3
2 1/2 65 0 - 120 m /h PP 553 393
3
3 80 0 - 180 m /h PP 553 394
3
4 100 0 - 280 m /h PP 553 489
3
3
6 150 0 - 640 m /h PP 557 512
BS4825 Hygienic clamp Inline sensor fitting - S056 - Stainless steel body
1/8 3 0 - 250 l/h PTFE 559 786

1/4 6 0 - 1000 l/h PTFE 553 325
3/8 10 0 - 3000 l/h PTFE 554 350

1/2 15 0 - 6000 l/h PTFE 553 533
3/4 20 0 - 12500 l/h PTFE 553 534

3
1 25 0 - 18 m /h PTFE 553 535
3
1 1/2 40 0 - 45 m /h PTFE 553 536
2 50 0 - 72 m /h PTFE 553 537
3
2 1/2 65 0 - 120 m /h PTFE 553 538
3
3 80 0 - 180 m /h PTFE 559 791
3

Options
• Various sealing materials • St.St. body and EN or ANSI/DIN flanges for S055
• Larger sizes are available as standard • PTFE lining and PN40 pressure class for S054 and S055
• Individual calibration certificate • 2 relay outputs NO/NC 2A-250V AC, 60W 125V AC
• Remote versions (10/20 m cable, IP68), blind version • Hart, Profibus, RS232, RS485
