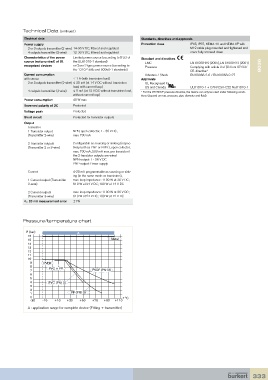

Technical Data (continued )
Electrical data Standards, directives and approvals
Power supply Protection class IP65, IP67, NEMA 4X and NEMA 6P with
2 or 3 outputs transmitter (2-wire) 14-36 V DC, filtered and regulated M12 cable plug mounted and tightened and
4 outputs transmitter (3-wire) 12-36 V DC, filtered and regulated cover fully screwed down
Characteristics of the power Limited power source (according to § 9.3 of Standard and directives
source (not provided) of UL the UL61010-1 standard) EMC EN 61000-6-2 (2005), EN 61000-6-3 (2001)
recognized devices or Class 2 type power source (according to Pressure Complying with article 3 of §3 from 97/23/ 8036
the 1310/1585 and 60950-1 standards) CE. directive*
Current consumption Vibration / Shock EN 60068-2-6 / EN 60068-2-27
with sensor ≤ 1 A (with transistors load) Approvals
2 or 3 outputs transmitter (2-wire) ≤ 25 mA (at 14 V DC without transistors UL-Recognized for
load, with current loop) US and Canada UL61010-1 + CAN/CSA-C22 No.61010-1
4 outputs transmitter (3-wire) ≤ 5 mA (at 12 V DC without transistors load, * For the 97/23/CE pressure directive, the device can only be used under following condi-
without current loop) tions (depend on max. pressure, pipe diameter and fluid).
Power consumption 40 W max.
Reversed polarity of DC Protected
Voltage peak Protected
Short circuit Protected for transistor outputs
Output
Transistor
1 Transistor output NPN, open collector, 1 - 36 V DC,
(Transmitter 2-wire) max. 700 mA

2 Transistor outputs Configurable as sourcing or sinking (respec-
(Transmitter 2 or 3-wire) tively both as PNP or NPN ), open collector,
max. 700 mA, 500 mA max. per transistor if
the 2 transistor outputs are wired
NPN-output: 1 - 36 V DC
PNP-output: Power supply

Current 4-20 mA programmable as sourcing or sink-
ing (in the same mode as transistors),
1 Current output (Transmitter max. loop impedance: 1100 W at 36 V DC ;
2-wire) 610 W at 24 V DC; 180 W at 14 V DC

2 Current outputs max. loop impedance: 1100 W at 36 V DC;
(Transmitter 3-wire) 610 W at 24 V DC; 100 W at 12 V DC
4... 20 mA measurement error ±1%

Pressure/temperature chart

P (bar) A
16
15 Metal
14
13
12
11
10
9 PVDF
8 PVC + PP
7 PVDF (PN10)
6
5
4 PVC (PN10)
3
2
1 PP (PN10)
0 T °C
-30 -10 +10 +30 +50 +70 +90 +110
A : application range for complete device (Fitting + transmitter)
