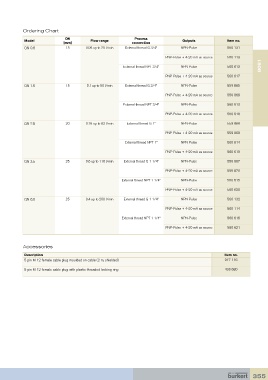

Ordering Chart
DN Process
Model Flow range Outputs Item no.
[mm] connection
QN 0.6 15 0.06 up to 20 l/min External thread G 3/4” NPN-Pulse 560 131
PNP-Pulse + 4-20 mA as source 560 113
8081
External thread NPT 3/4” NPN-Pulse 560 612
PNP-Pulse + 4-20 mA as source 560 617

QN 1.5 15 0.1 up to 50 l/min External thread G 3/4” NPN-Pulse 559 865

PNP-Pulse + 4-20 mA as source 559 868
External thread NPT 3/4” NPN-Pulse 560 613

PNP-Pulse + 4-20 mA as source 560 618

QN 2.5 20 0.16 up to 82 l/min External thread G 1” NPN-Pulse 559 866
PNP-Pulse + 4-20 mA as source 559 869

External thread NPT 1” NPN-Pulse 560 614

PNP-Pulse + 4-20 mA as source 560 619
QN 3.5 25 0.6 up to 116 l/min External thread G 1 1/4” NPN-Pulse 559 867

PNP-Pulse + 4-20 mA as source 559 870
External thread NPT 1 1/4” NPN-Pulse 560 615

PNP-Pulse + 4-20 mA as source 560 620

QN 6.0 25 0.4 up to 200 l/min External thread G 1 1/4” NPN-Pulse 560 132
PNP-Pulse + 4-20 mA as source 560 114

External thread NPT 1 1/4” NPN-Pulse 560 616
PNP-Pulse + 4-20 mA as source 560 621

Accessories
Description Item no.
5 pin M 12 female cable plug moulded on cable (2 m, shielded) 917 116
5 pin M 12 female cable plug with plastic threaded locking ring 438 680
