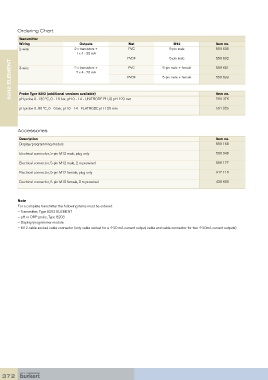

Ordering Chart
Transmitter
Wiring Outputs Nut M12 Item no.
2-wire 2 x transistors + PVC 5-pin male 559 630
1 x 4 - 20 mA
PVDF 5-pin male + female 559 632
5-pin male
8202 ELEMENT Probe Type 8203 (additional versions available) PVDF 5-pin male + female Item no.
2 x transistors +
3-wire
PVC
559 631
2 x 4 - 20 mA
559 633

pH probe 0...130 °C, 0 - 16 bar, pH 0 - 14 - UNITRODE PLUS pH 120 mm
561 025
pH probe 0...80 °C, 0 - 6 bar, pH 0 - 14 - FLATRODE pH 120 mm 560 376

Accessories
Description Item no.
Display/programming module 559 168

Electrical connector, 5-pin M12 male, plug only 560 946
Electrical connector, 5-pin M12 male, 2 m prewired 559 177

Electrical connector, 5-pin M12 female, plug only 917 116

Electrical connector, 5-pin M12 female, 2 m prewired 438 680

Note
For a complete transmitter the following items must be ordered:
– Transmitter, Type 8202 ELEMENT
– pH or ORP probe, Type 8203
– Display/programmer module
– M12 cable socket, cable connector (only cable socket for a 4-20 mA current output, cable and cable connector for two 4-20mA current outputs)
