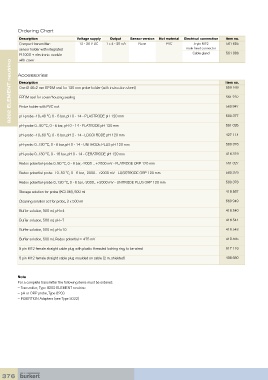

Ordering Chart
Description Voltage supply Output Sensor version Nut material Electrical connection Item no.
Compact transmitter: 12 - 36 V DC 1 x 4 - 20 mA None PVC 5-pin M12 561 685
sensor holder with integrated male fixed connector
Cable gland 561 686
Pt1000 + electronic module
with cover
8202 ELEMENT neutrino Accessories Item no.

Description
559 169
One Ø 46x2 mm EPDM seal for 120 mm probe holder (with instruction sheet)
561 752
EPDM seal for cover/housing sealing
560 947
Probe holder with PVC nut
pH-probe -10...40 °C, 0 - 6 bar, pH 0 - 14 - PLASTRODE pH 120 mm
561 025
pH-probe 0... 80 °C, 0 - 6 bar, pH 0 - 14 - FLATRODE pH 120 mm 560 377
pH-probe -10...60 °C, 0 - 6 bar, pH 2 - 14 - LOGOTRODE pH 120 mm 427 114
pH-probe 0...130 °C, 0 - 6 bar, pH 0 - 14 - UNITRODE PLUS pH 120 mm 560 376

pH-probe 0...130 °C, 0 - 16 bar, pH 0 - 14 - CERATRODE pH 120 mm 418 319

Redox potential-probe 0...80 °C, 0 - 6 bar, -2000 ... +2000 mV - FLATRODE ORP 120 mm 561 027
Redox potential-probe -10...50 °C, 0 - 6 bar, -2000... +2000 mV - LOGOTRODE ORP 120 mm 560 379

Redox potential-probe 0...130 °C, 0 - 6 bar, -2000... +2000 mV - UNITRODE PLUS ORP 120 mm 560 378
Storage solution for probe (KCl 3M), 500 ml 418 557

Cleaning solution set for probe, 3 x 500 ml 560 949

Buffer solution, 500 ml, pH=4 418 540
Buffer solution, 500 ml, pH=7 418 541

Buffer solution, 500 ml, pH=10 418 543

Buffer solution, 500 ml, Redox potential = 475 mV 418 555
5 pin M12 female straight cable plug with plastic threaded locking ring, to be wired 917 116

5 pin M12 female straight cable plug moulded on cable (2 m, shielded) 438 680

Note
For a complete transmitter the following items must be ordered:
– Transmitter, Type 8202 ELEMENT neutrino
– pH or ORP probe, Type 8203
– INSERTION Adapters (see Type S022)
