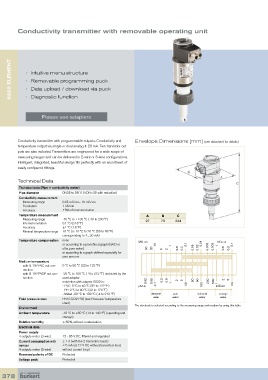

Conductivity transmitter with removable operating unit

8222 ELEMENT • Intuitive menu structure

• Removable programming puck
• Data upload / download via puck
• Diagnostic function

Please see adapters

Conductivity transmitter with programmable outputs. Conductivity and Envelope Dimensions [mm] (see datasheet for details)
temperature output via single or dual analog 4-20 mA. Two transistor out-
puts are also included. Transmitters are engineered for a wide scope of
measuring ranges and can be delivered in 2-wire or 3-wire configurations.
Intelligent, integrated, beautiful design fits perfectly with an assortment of
easily configured fittings.

Technical Data
Technical data (Pipe + conductivity meter)
Pipe diameter DN25 to DN110 (DN<25 with reduction)
Conductivity measurement
Measuring range 0.05 mS/cm... 10 mS/cm
Resolution 1 nS/cm
Accuracy ±3% of measured value
Temperature measurement A B C
Measuring range -40 °C to +130 °C (-40 to 266 °F) 97 70 244
Internal resolution 0.1 °C (0.18 °F)
Accuracy ±1 °C (1.8 °F)
Minimal temperature range 10 °C (i.e 10 °C to 20 °C (50 to 68 °F)
corresponding to 4... 20 mA)
Temperature compensation none
or according to a predefined graph (NACl or 10 1 0.1 0.01 1 0.1
ultra pure water) 50 20 5 2 0.5 0.2 0.05 0.02 0.005 0.002 0.5 0.2
or according to a graph defined especially for
your process C=1.0
Medium temperature
with G 1½” PVC nut con- 0 °C to 50 °C (32 to 122 °F) C=0.1
nection C=0.01
with G 1½” PVDF nut con- -20 °C to 100 °C (-4 to 212 °F) restricted by the
nection used adaptor 2 5
restriction with adaptor S022 in: 0.02 0.05 0.2 0.5 1 2 5 20 50 200 500 1
- PVC: 0 °C to 50 °C (32 to 122 °F) 0.1 10 100 mS/cm 10
- PP: 0 °C to 80 °C (32 to 176 °F)
- Metal: -20 °C to 100 °C (-4 to 212 °F) ultra-pure pure industrial sewage
water water water water
Fluid pressure max PN16 (232 PSI) (see Pressure/Temperature
chart)
The electrode is selected according to the measuring range and medium by using this table.
Environment
Ambient temperature -10 °C to +60 °C (14 to 140 °F) (operating and
storage)
Relative humidity ≤ 85%, without condensation
Electrical data
Power supply
4 outputs meter (3-wire) 12 - 36 V DC, filtered and regulated
Current consumption with ≤ 1 A (with the 2 transistors loads)
sensor ≤ 5 mA (at 12 V DC without transistors load,
4 outputs meter (3-wire) without current loop)
Reversed polarity of DC Protected
Voltage peak Protected

378
