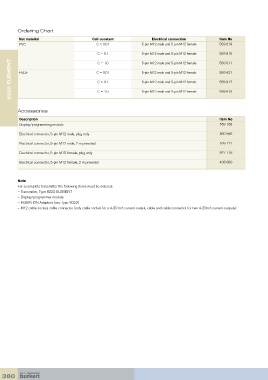

Ordering Chart
Nut material Cell constant Electrical connection Item No
PVC C = 0.01 5-pin M12 male and 5-pin M12 female 559 619
C = 0.1 5-pin M12 male and 5-pin M12 female 559 615
8222 ELEMENT PVDF C = 0.01 5-pin M12 male and 5-pin M12 female 559 621
559 611
C = 1.0
5-pin M12 male and 5-pin M12 female

C = 0.1
5-pin M12 male and 5-pin M12 female
559 617
559 613
C = 1.0
5-pin M12 male and 5-pin M12 female

Accessories
Description Item No
Display/programming module 559 168
Electrical connector, 5-pin M12 male, plug only 560 946

Electrical connector, 5-pin M12 male, 2 m prewired 559 177

Electrical connector, 5-pin M12 female, plug only 917 116
Electrical connector, 5-pin M12 female, 2 m prewired 438 680

Note
For a complete transmitter the following items must be ordered:
– Transmitter, Type 8222 ELEMENT
– Display/programmer module
– INSERTION Adapters (see Type S022)
– M12 cable socket, cable connector (only cable socket for a 4-20 mA current output, cable and cable connector for two 4-20mA current outputs)
