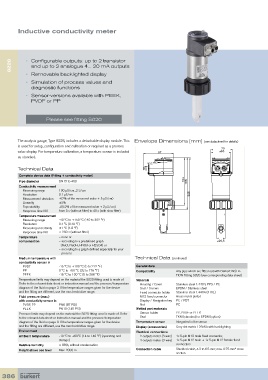

Inductive conductivity meter

8228 • Configurable outputs: up to 2 transistor
and up to 2 analogue 4... 20 mA outputs
• Removable backlighted display
• Simulation of process values and
diagnostic functions
• Sensor-versions available with PEEK,
PVDF or PP

Please see fitting S020

The analysis gauge, Type 8228, includes a detachable display module. This Envelope Dimensions [mm] (see datasheet for details)
is used for setup, configuration and calibration or required as a process
70 70
value display. For temperature calibration, a temperature sensor is included 97 97 65 65
as standard.

Technical Data
Complete device data (Fitting + conductivity meter)
Pipe diameter DN15 to 400 154 168 154 168
Conductivity measurement
Measuring range 100 µS/cm...2 S/cm
Resolution 0.1 µS/cm 246 246
Measurement deviation ±(2% of the measured value + 5 µS/cm)
Linearity ±2%
Repeatability ±(0.2% of the measured value + 2 µS/cm)
Response time t90 from 3 s (without filter) to 40 s (with slow filter)
Temperature measurement
Measuring range -40 °C to +150 °C (-40 to 302 °F)
Resolution 0.1 °C (0.18 °F)
Measuring uncertainty ±1 °C (1.8 °F)
Response time t90 < 280 s (without filter)
Temperature – none or
compensation – according to a predefined graph 26,5 26,5
(NaCl, NaOH, HNO3 or H2SO4) or
– according to a graph defined especially for your
process
Medium temperature with Technical Data (continued)
conductivity sensor in
PVDF -15 °C to +100 °C (5 to 212 °F) General data
PP 0 °C to +80 °C (32 to 176 °F) Compatibility Any pipe which are fitted out with Bürkert INSER-
PEEK -15 °C to 130 °C (5 to 266 °F) TION Fitting S020 (see corresponding data sheet)
Temperature limits may depend on the material the S020 fitting used is made of. Materials
Refer to the relevant data sheet or instruction manual and the pressure/temperature Housing / Cover Stainless steel 1.4404, PPS / PC
diagram of the fluid on page 3. If the temperature ranges given for the device Seal / Screws EPDM / Stainless steel
and the fitting are different, use the most restrictive range. Fixed connector holder Stainless steel 1.4404 (316L)
Fluid pressure (max.) M12 fixed connector Brass nickel plated
with conductivity sensor in Display / Navigation key PC / PBT
PVDF, PP PN6 (87 PSI) Nut PC
PEEK PN10 (145 PSI) Wetted part materials
Pressure limits may depend on the material the S020 fitting used is made of. Refer Sensor holder PP, PVDF or PEEK
to the relevant data sheet or instruction manual and the pressure/temperature Seal FKM (standard) or EPDM (option)
diagram of the fluid on page 3. If the temperature ranges given for the device Temperature sensor Integrated in the sensor
and the fitting are different, use the most restrictive range. Display (accessories) Grey dot matrix 128x64 with backlighting
Environment Electrical connections
Ambient temperature -10 °C to +60°C (14 to 140 °F) (operating and 2 outputs meter (3-wire) 1x 5-pin M12 male fixed connector,
storage) 4 outputs meter (3-wire) 1x 5-pin M12 male + 1x 5-pin M12 female fixed
Relative humidity ≤ 85%, without condensation connectors
2
Height above see level Max. 2000 m Connection cable Shielded cable, ø 3 to 6.5 mm; max. 0.75 mm cross
section
