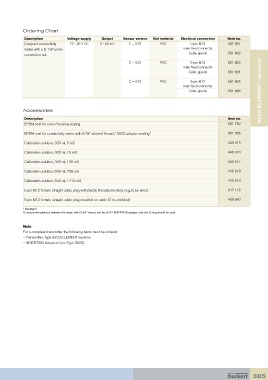

Ordering Chart
Description Voltage supply Output Sensor version Nut material Electrical connection Item no.
Compact conductivity 12 - 36 V DC 4 - 20 mA C = 0.01 PVC 5-pin M12 561 661
meter with a G 1½” union male fixed connector
Cable glands 561 662
connection nut
8222 ELEMENT neutrino
C = 0.01 PVC 5-pin M12 561 663
male fixed connector
Cable glands 561 664

C = 0.01 PVC 5-pin M12 561 665
male fixed connector
Cable glands 561 666

Accessories
Description Item no.
EPDM seal for cover/housing sealing 561 752
EPDM seal for conductivity meter with G ¾” external thread / S022 adaptor sealing* 561 955

Calibration solution, 300 ml, 5 mS 440 015

Calibration solution, 300 ml, 15 mS 440 016
Calibration solution, 300 ml, 100 mS 440 017

Calibration solution, 500 ml, 706 mS 440 018

Calibration solution, 500 ml, 1413 mS 440 019
5 pin M12 female straight cable plug with plastic threaded locking ring, to be wired 917 116

5 pin M12 female straight cable plug moulded on cable (2 m, shielded) 438 680
* Important!
To ensure the tightness between the meter, with G 3/4” thread, and the S022 INSERTION adapter, only this O-ring should be used.

Note
For a complete transmitter the following items must be ordered:
– Transmitter, Type 8222 ELEMENT neutrino
– INSERTION Adapters (see Type S022)
