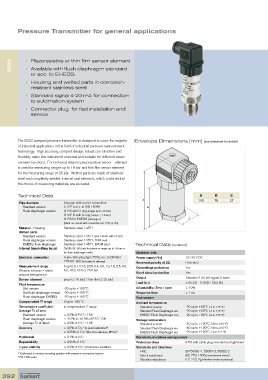

Pressure Transmitter for general applications

8323 • Piezoresistive or thin film sensor element
• Available with flush diaphragm standard
or acc. to EHEDG
• Housing and wetted parts in corrosion-
resistant stainless steel
• Standard signal 4-20 mA for connection
to automation-system

• Connector plug for fast installation and
service

The 8323 compact pressure transmitter is designed to cover the majority Envelope Dimensions [mm] (see datasheet for details)
of industrial applications in the field of industrial pressure measurement
technology. High accuracy, compact design, robust con-struction and
flexibility make this instrument universal and suitable for different meas-
urement functions. For technical reasons piezoresistive sensor element
is used for measuring ranges up to 16 bar and thin film sensor element
for the measuring range of 25 bar. Wetted parts are made of stainless
steel and completely welded. Internal seal elements, which could restrict
the choice of measuring materials, are excluded.

Technical Data A B C
A 110 75 27
Pipe diameter Any pipe with sensor connection:
Standard version G1/2” A acc. to DIN 16288 B
Flush diaphragm version G1” B with O-ring (range up to 1.6 bar)
G1/2” B with O-ring (range > 1.6 bar)
G1” B for EHEDG (all ranges) C
[Weld-on socket with connection G1/2”B, G1”B]
Material - Housing Stainless steel 1.4571
Wetted parts
Standard version Stainless steel 1.4571 (and 1.4542 with 25 bar)
Flush diaphragm version Stainless steel 1.4571, FKM seal
EHEDG flush diaphragm Stainless steel 1.4571, EPDM seal Technical Data (continued)
Internal transmitting liquid Synthetic oil (only for pressure range up to 16 bar or
for flush diaphragm units) Electrical data
Electrical connection 4-pin cable plug,Type 2508, acc. to DIN EN Power supply [Vs] 10 -30 V DC
175301-803 (included in delivery) Reversed polarity of DC Protected
Measurement range 0 up to 0.1, 0.16, 0.25, 0.4, 0.6, 1.0, 1.6, 2.5, 4.0, Overvoltage protection Yes
[Pressure reference = relative 6.0, 10.0, 16.0 or 25.0 bar
pressure (atmospheric)] Short circuit protection Yes
Output Standard 4-20 mA signal, 2 wires
Sensor element piezo (≤ 16 bar) / thin film (≤ 25 bar)
Load in Ω ≤ (Vs [V] - 10 [V]) / 0.02 [A]
Fluid temperature
Std. version -20 up to +100 ºC Adjustability: Zero / span ± 10%
Std flush diaphragm version -30 up to +100 ºC Response time ≤ 1 ms
Flush diaphragm EHEDG -20 up to +150 ºC Environment
Compensated T° range 0 up to +80 ºC Ambient temperature
Temperature coefficient in compensated T° range Standard version -20 up to +80°C (-4 to 176 °F)
Average Tc of zero Standard Flush Diaphragm ver. -20 up to +80°C (-4 to 176 °F)
Standard version ≤ 0.2% of F.S.* / 10K EHEDG Flush Diaphragm ver. -20 up to +80°C (-4 to 176 °F)
Flush diaphragm version ≤ -0.2% to +0.3% of F.S.*/ 10K Storage temperature
Average Tc of Span ≤ 0.2% of F.S.* / 10K Standard version -40 up to +100°C (-40 to 212 °F)
Accuracy ≤ 0.5% of F.S.* (2-point calibration) 1) Standard Flush Diaphragm ver. -40 up to +100°C (-40 to 212 °F)
≤ 0.25% of F.S.* (Best fit calibration, BFSL) 1) EHEDG Flush Diaphragm ver. -20 up to +100°C (-4 to 212 °F)
Hysteresis ≤ 0.1% of F.S.* Standards, directives and approvals
Repeatability ≤ 0.05% of F.S.* Protection class IP65 with cable plug mounted and tightened
1-year stability ≤ 0.2% of F.S.* (at reference condition) Standards and directives
EMC EN 50081-1, 50081-2, 50082-2
1) Calibrated in vertical mounting position with pressure connection bottom
* F.S.=Full scale Shock resistance IEC 770, 1000g (mechanical shock)
Vibration resistance IEC 770, 2g (vibration under resonance)
