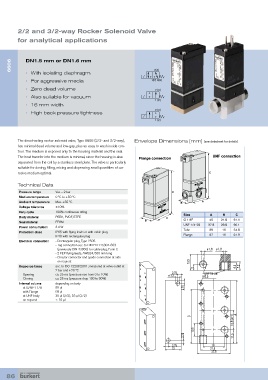

Page 87 - Bürkert

2/2 and 3/2-way Rocker Solenoid Valve
for analytical applications

6606 DN1.5 mm or DN1.6 mm

• With isolating diaphragm 2(A)
• For aggressive media 1(P) 3(R)
• Zero dead volume 2 (A)
• Also suitable for vacuum
1 (P)
• 16 mm width
2 (A)
• High back pressure tightness
1 (P)

The direct-acting rocker solenoid valve, Type 6606 (2/2- and 3/2-way), Envelope Dimensions [mm] (see datasheet for details)
has minimal dead volume and low-gap, plus an easy to wash inside con-
tour. The medium is exposed only to the housing material and the seal.
The heat transfer into the medium is minimal, since the housing is also Flange connection UNF connection
separated from the coil by a stainless steel plate. The valve is particularly
suitable for dosing, filling, mixing and dispensing small quantities of cor-
rosive medium optimal. C

Technical Data

Pressure range Vac – 2 bar C
Medium temperature 0 °C to +50 °C
Ambient temperature Max. +55 °C B A
Voltage tolerance ±10%
Duty cycle 100% continuous rating
Size A B C
Body material PEEK, PVDF, ETFE A
Seal material FFKM B G 1/8” 45 21.8 61.1
UNF 1/4-28 37.8 23.8 60.1
Power consumption 3.4 W
Tube 39 16 54.8
Protection class IP65 with flying leads or with cable plug
IP40 with rectangular plug Flange 27 16 51.9
Electrical connection - Rectangular plug, Type 2505
- Tag connection acc. to DIN EN 175301-803
(previously DIN 43650) for cable plug, Form C ø 1,8 ø 1,8
- 2 FEP flying leads, AWG24, 500 mm long
- Circular connector and spade connection at side
on request 13,5
Response times acc. to ISO 12238:2001; measured at valve outlet at 5 6,5 7,2
2 bar and +20 °C
2,75
Opening ca. 25 ms (pressure rise from 0 to 10%) ø 3,2 UNF1/4-28
Closing ca. 25 ms (pressure drop 100 to 90%) M2,5
Internal volume depending on body
at G/NPT 1/8 85 µl 2,75
with Flange 68 µl
at UNF body 30 µl (2/2), 55 µl (3/2)
on request < 10 µl

16,5 (xn-1)
B A

10,5
2,75 11,5

2,75 18
13 21,5
27,5

86
