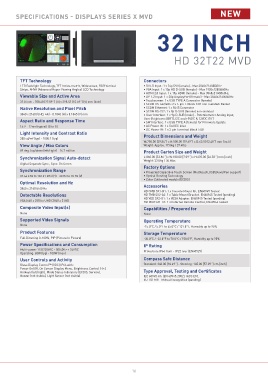

SPECIFICATIONS - DISPLAYS SERIES X MVD
32 INCH
HD 32T22 MVD
TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix, Widescreen, RGB Vertical • DVI-D Input: 1 x 24p DVI (female) - Max 3840x2160@30Hz
Stripe, AHVA (Advanced Hyper Viewing Angles) LCD Technology • VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
• HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz
Viewable Size and Active Area • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
32.0 inch - 708.48 [27.89’’] (H) x 398.52 [15.69’’] (V) mm [inch] • Touchscreen: 1 x USB TYPE A Connector (female)
• SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer
Native Resolution and Pixel Pitch • SCOM Ethernet: 1 x RJ45 Connector
3840 x 2160 (UHD, 4K) - 0.1845 (H) x 0.1845 (V) mm • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated
• User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input,
Aspect Ratio and Response Time User Brightness (BRT), I2C and +5VDC & 12VDC OUT
• SW Interface: 1 x USB TYPE A (female) for Firmware Update
16:9 - 12ms (typical) (G to G) • AC Power IN: 1 x Std IEC Inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08
Light Intensity and Contrast Ratio
350 cd/m² (typ) - 1000:1 (typ) Product Dimensions and Weight
W:758.00 [29.84’’] x H:500.00 [19.69’’] x D:63.50 [2.48’’] mm [inch]
View Angle / Max Colors Weight: Approx. 17.0kg / 37.4lbs
89 deg. (up/down/left/right) - 16.7 million Product Carton Size and Weight
Synchronization Signal Auto-detect L:860.00 [33.86’’] x W:180.00 [7.09’’] x H:670.00 [26.38’’] mm [inch]
Weight: 23.0kg / 50.6lbs
Digital Separate Sync., Sync. On Green Factory Options
Synchronization Range • Projected Capacitive Touch Screen (Multitouch,USB,Glove/Pen support)
31.44 kHz to 133.31 kHz (H) - 30 Hz to 70 Hz (V) • Optical Bonding Technology
• Color Calibrated models (ECDIS)
Optimal Resolution and Hz
3840 x 2160 @ 60 Hz Accessories
HD CMB SX1-B1: 1 x Console Mount Kit. EN60945 Tested
Detectable Resolutions HD TMB SX2-A2: 1 x Table Mount Bracket. EN60945 Tested (pending)
VGA (640 x 350) to UHD (3840 x 2160) HD VED SX2-G1: 1 x VESA Adapter. EN60945 Tested (pending)
HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
Composite Video Input(s) Capabilities / Prepared for
None None
Supported Video Signals Operating Temperature
None
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Product Features Storage Temperature
Full Dimming 0-100%, PIP (Picture In Picture) -30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Power Specifi cations and Consumption IP Rating
Multi-power 115/230VAC - 50/60Hz + 24VDC Protection: IP66 front - IP22 rear (EN60529)
Operating: 65W (typ) - 100W (max)
User Controls and Activity Compass Safe Distance
Glass Display Control™ (GDC) IP66 with: Standard: 240.00 [94.49’’] - Steering: 145.00 [57.09’’] cm [inch]
Power On/Off, On Screen Display Menu, Brightness Control (-/+),
Hotkeys (left/right), Mode Status Indicators (ECDIS, Service), Type Approval, Testing and Certifi cates
Buzzer (not visible), Light Sensor (not visible) IEC 60945 4th (EN 60945:2002), IACS E10,
EU-RO-MR - Mutual Recognition (pending)
