NEW

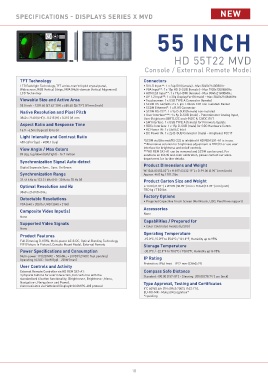

SPECIFICATIONS - DISPLAYS SERIES X MVD

55 INCH

HD 55T22 MVD

Console / External Remote Model

TFT Technology Connectors
LED Backlight Technology, TFT active-matrix liquid crystal panel, • DVI-D Input**: 1 x 24p DVI (female) - Max 3840x2160@30Hz
Widescreen, RGB Vertical Stripe, MVA (Multi-domain Vertical Alignment) • VGA Input**: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
LCD Technology • HDMI 2.0 Input**: 1 x 19p HDMI (female) - Max 3840x2160@60Hz
• DP 1.2 Input**: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
Viewable Size and Active Area • Touchscreen: 1 x USB TYPE A Connector (female)
55.0 inch - 1209.60 [47.62’’] (H) x 680.40 [26.79’’] (V) mm [inch] • SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer
• SCOM Ethernet*: 1 x RJ45 Connector
Native Resolution and Pixel Pitch • SCOM RS-232*: 1 x 9p D-SUB (female) non-isolated
3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm • User Interface***: 1 x 9p D-SUB (male) - Potentiometer Analog Input,
User Brightness (BRT), I2C and +5VDC & 12VDC OUT
Aspect Ratio and Response Time • SW Interface: 1 x USB TYPE A (female) for Firmware Update
• GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm.
16:9 - 6.5ms (typical) (G to G) • AC Power IN: 1 x Std IEC Inlet
• DC Power IN: 1 x 2p D-SUB Connector (male) - Amphenol FCC17
Light Intensity and Contrast Ratio
450 cd/m² (typ) - 4000:1 (typ) *SCOM via Ethernet/RS-232 is inhibited if HD REM SX1-A1 is in use.
**Alternative solution for brightness adjustment is DDC/CI or use user
View Angle / Max Colors interface for brightness and on/off controls.
***HD REM SX1-A1 can be removed and SCOM can be used. For
89 deg. (up/down/left/right) - 16.7 million solutions on ECDIS and color calibration, please contact our sales
department for further details.
Synchronization Signal Auto-detect
Digital Separate Sync., Sync. On Green Product Dimensions and Weight
W:1346.83 [53.02’’] x H:817.63 [32.19’’] x D:99.00 [3.90’’] mm [inch]
Synchronization Range Approx. 46.0 kg / 101.2lbs
31.44 kHz to 133.31 kHz (H) - 30 Hz to 70 Hz (V) Product Carton Size and Weight
Optimal Resolution and Hz L:1570 [61.81’’] x W:990 [38.98’’] mm x H:340 [13.39’’] mm [inch]
TBD kg / TBD lbs
3840 x 2160 @ 60 Hz
Detectable Resolutions Factory Options
• Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support)
VGA (640 x 350) to UHD (3840 x 2160)
Composite Video Input(s) Accessories
None
None
Supported Video Signals Capabilities / Prepared for
None • Color Calibrated models (ECDIS)
Product Features Operating Temperature
Full Dimming 0-100%, Multi-power AC & DC, Optical Bonding Technology, -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
PIP (Picture In Picture), Console Mount Model, External Remote Storage Temperature
Power Specifi cations and Consumption -30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Multi-power 115/230VAC - 50/60Hz + 24VDC (24VDC Test pending) IP Rating
Operating AC/DC: 145W (typ) - 220W (max)
Protection: IP66 front - IP22 rear (EN60529)
User Controls and Activity
External Remote Controller via HD REM SX1-A1: Compass Safe Distance
3 physical buttons for user interaction, but conforms with the Standard: 400.00 [157.48’’] - Steering: 200.00 [78.74’’] cm [inch]
standardized 6 button functionality; (Brightness+, Brightness-, Menu,
Navigation<, Navigation> and Power). Type Approval, Testing and Certifi cates
Communicates via Hatteland Display® SCOM RS-485 protocol
IEC 60945 4th (EN 60945:2002), IACS E10,
EU-RO-MR - Mutual Recognition*
*=pending
