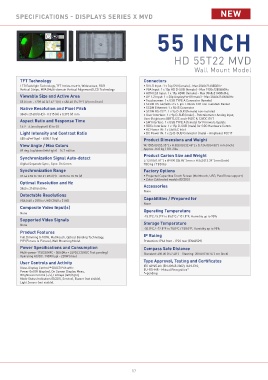

SPECIFICATIONS - DISPLAYS SERIES X MVD

55 INCH

HD 55T22 MVD

Wall Mount Model

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix, Widescreen, RGB • DVI-D Input: 1 x 24p DVI (female) - Max 3840x2160@30Hz
Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology • VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
• HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz
Viewable Size and Active Area • DP 1.2 Input: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
55.0 inch - 1209.60 [47.62’’] (H) x 680.40 [26.79’’] (V) mm [inch] • Touchscreen: 1 x USB TYPE A Connector (female)
• SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer
Native Resolution and Pixel Pitch • SCOM Ethernet: 1 x RJ45 Connector
3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm • SCOM RS-232*: 1 x 9p D-SUB (female) non-isolated
• User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input,
Aspect Ratio and Response Time User Brightness (BRT), I2C and +5VDC & 12VDC OUT
• SW Interface: 1 x USB TYPE A (female) for Firmware Update
16:9 - 6.5ms (typical) (G to G) • GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm.
• AC Power IN: 1 x Std IEC Inlet
Light Intensity and Contrast Ratio • DC Power IN: 1 x 2p D-SUB Connector (male) - Amphenol FCC17
450 cd/m² (typ) - 4000:1 (typ) Product Dimensions and Weight
View Angle / Max Colors W:1355.00 [53.35’’] x H:828.00 [32.48’’] x D:124.00 [4.88’’] mm [inch]
89 deg. (up/down/left/right) - 16.7 million Approx. 46.0 kg / 101.2lbs
Product Carton Size and Weight
Synchronization Signal Auto-detect L:1570 [61.81’’] x W:990 [38.98’’] mm x H:340 [13.39’’] mm [inch]
Digital Separate Sync., Sync. On Green TBD kg / TBD lbs
Synchronization Range Factory Options
31.44 kHz to 133.31 kHz (H) - 30 Hz to 70 Hz (V) • Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support)
• Color Calibrated models (ECDIS)
Optimal Resolution and Hz
3840 x 2160 @ 60 Hz Accessories
None
Detectable Resolutions
VGA (640 x 350) to UHD (3840 x 2160) Capabilities / Prepared for
None
Composite Video Input(s)
None Operating Temperature
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Supported Video Signals
None Storage Temperature
-30.0°C / -22.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Product Features
Full Dimming 0-100%, Multitouch, Optical Bonding Technology, IP Rating
PIP (Picture In Picture), Wall Mounting Model Protection: IP66 front - IP22 rear (EN60529)
Power Specifi cations and Consumption Compass Safe Distance
Multi-power 115/230VAC - 50/60Hz + 24VDC (24VDC Test pending) Standard: 400.00 [157.48’’] - Steering: 200.00 [78.74’’] cm [inch]
Operating AC/DC: 145W (typ) - 220W (max)
User Controls and Activity Type Approval, Testing and Certifi cates
Glass Display Control™ (GDC) IP66 with: IEC 60945 4th (EN 60945:2002), IACS E10,
EU-RO-MR - Mutual Recognition*
Power On/Off (display), On Screen Display Menu, *=pending
Brightness Control (-/+), Hotkeys (left/right),
Mode Status Indicators (ECDIS, Service), Buzzer (not visible),
Light Sensor (not visible).
