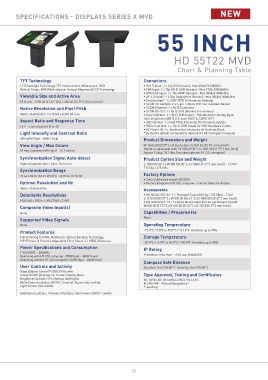

SPECIFICATIONS - DISPLAYS SERIES X MVD

55 INCH

HD 55T22 MVD

Chart & Planning Table

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix, Widescreen, RGB • DVI-D Input: 1 x 24p DVI (female) - Max 3840x2160@30Hz
Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology • VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
• HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz
Viewable Size and Active Area • DP 1.2 Input*: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
55.0 inch - 1209.60 [47.62’’] (H) x 680.40 [26.79’’] (V) mm [inch] • Touchscreen*: 1 x USB TYPE A Connector (female)
• SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer
Native Resolution and Pixel Pitch • SCOM Ethernet: 1 x RJ45 Connector
3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated
• User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input,
Aspect Ratio and Response Time User Brightness (BRT), I2C and +5VDC & 12VDC OUT
• SW Interface: 1 x USB TYPE A (female) for Firmware Update
16:9 - 6.5ms (typical) (G to G) • GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm.
• AC Power IN: 1 x Junction Box enclosure w/Terminal Block
Light Intensity and Contrast Ratio * By factory default connected to internal HT C02 Compact Computer
450 cd/m² (typ) - 4000:1 (typ) Product Dimensions and Weight
View Angle / Max Colors W:1360.68 [53.57’’] x H:See below x D:831.48 [32.74’’] mm [inch]
89 deg. (up/down/left/right) - 16.7 million Height is adjustable from 761.00 [29.96’’] to 1061.00 [41.77’’] mm [inch]
Approx 155kg / 341.0lbs (includes optional HT C02 computer)
Synchronization Signal Auto-detect Product Carton Size and Weight
Digital Separate Sync., Sync. On Green L:1500 [59.06’’] x W:980 [38.58’’] x D:1000 [39.37’’] mm [inch] - 1.47m³
215.0kg / 473.0lbs
Synchronization Range
31.44 kHz to 133.31 kHz (H) - 30 Hz to 70 Hz (V) Factory Options
• Color Calibrated models (ECDIS)
Optimal Resolution and Hz • Factory Integrated HT C02 computer - contact Sales for details.
3840 x 2160 @ 60 Hz Accessories
Detectable Resolutions • HD 55CAS SX1-A1: 1 x Transport Case (60.0 kg / 132.0lbs) - 1.3m³
VGA (640 x 350) to UHD (3840 x 2160) L:1470.00 [57.87’’] x W:930.00 [36.61’’] x D:1000.00 [39.37’’] mm [inch]
• HD 55BAS SX1-A1 : 1 x Base Mount Plate (not for permanent mount)
Composite Video Input(s) W:806.00 [31.73’’] x H:610.00 [24.02’’] x D:10.00 [0.39’’] mm [inch]
None Capabilities / Prepared for
Supported Video Signals None
None Operating Temperature
Product Features -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Full Dimming 0-100%, Multitouch, Optical Bonding Technology, Storage Temperature
PIP (Picture In Picture), Adjustable Floor Stand, 2 x USB2.0 External -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Power Specifi cations and Consumption IP Rating
115/230VAC - 50/60Hz
Operating with HT C02 computer: 350W (typ) - 480W (max) Protection: IP66 front - IP22 rear (EN60529)
Operating without HT C02 computer: 300W (typ) - 440W (max) Compass Safe Distance
User Controls and Activity Standard: 5m [196.85’’] - Steering: 5m [196.85’’]
Glass Display Control™ (GDC) IP66 with:
Power On/Off (display), On Screen Display Menu, Type Approval, Testing and Certifi cates
Brightness Control (-/+), Hotkeys (left/right), IEC 60945 4th (EN 60945:2002), IACS E10,
Mode Status Indicators (ECDIS, Service), Buzzer (not visible), EU-RO-MR - Mutual Recognition*
Light Sensor (not visible). *=pending
Additional Controls: Tilt and Lift buttons, Main Power ON/OFF switch
