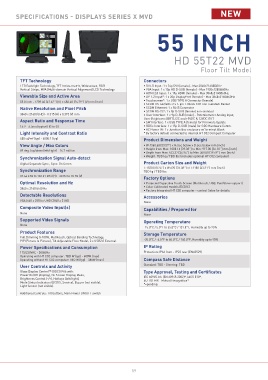

NEW
SPECIFICATIONS - DISPLAYS SERIES X MVD

55 INCH

HD 55T22 MVD

Floor Tilt Model

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix, Widescreen, RGB • DVI-D Input: 1 x 24p DVI (female) - Max 3840x2160@30Hz
Vertical Stripe, MVA (Multi-domain Vertical Alignment) LCD Technology • VGA Input: 1 x 15p HD D-SUB (female) - Max 1920x1200@60Hz
• HDMI 2.0 Input: 1 x 19p HDMI (female) - Max 3840x2160@60Hz
Viewable Size and Active Area • DP 1.2 Input*: 1 x 20p DisplayPort (female) - Max 3840x2160@60Hz
55.0 inch - 1209.60 [47.62’’] (H) x 680.40 [26.79’’] (V) mm [inch] • Touchscreen*: 1 x USB TYPE A Connector (female)
• SCOM RS-422/485: 2 x 5-pin T. Block 3.81 non-isolated+Buzzer
Native Resolution and Pixel Pitch • SCOM Ethernet: 1 x RJ45 Connector
3840 x 2160 (UHD) - 0.315 (H) x 0.315 (V) mm • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated
• User Interface: 1 x 9p D-SUB (male) - Potentiometer Analog Input,
Aspect Ratio and Response Time User Brightness (BRT), I2C and +5VDC & 12VDC OUT
• SW Interface: 1 x USB TYPE A (female) for Firmware Update
16:9 - 6.5ms (typical) (G to G) • GDCx Interface: 1 x 15p D-SUB (male) for GDC Hardware Comm.
• AC Power IN: 1 x Junction Box enclosure w/Terminal Block
Light Intensity and Contrast Ratio * By factory default connected to internal HT C02 Compact Computer
450 cd/m² (typ) - 4000:1 (typ) Product Dimensions and Weight
View Angle / Max Colors • W:1360.68 [53.57’’] x H:See below x D:See below mm [inch]
89 deg. (up/down/left/right) - 16.7 million • Height from Max: 1000.16 [39.38’’] to Min: 917.00 [36.10’’] mm [inch]
• Depth from Max: 633.37 [24.94’’] to Min: 500.00 [19.69’’] mm [inch]
Synchronization Signal Auto-detect • Weight: TBD kg / TBD lbs (includes optional HT C02 computer)
Digital Separate Sync., Sync. On Green Product Carton Size and Weight
L:1530 [60.24’’] x W:670 [26.38’’] x H:1100 [43.31’’] mm [inch]
Synchronization Range TBD kg / TBD lbs
31.44 kHz to 133.31 kHz (H) - 30 Hz to 70 Hz (V) Factory Options
Optimal Resolution and Hz • Projected Capacitive Touch Screen (Multitouch, USB, Pen/Glove support)
• Color Calibrated models (ECDIS)
3840 x 2160 @ 60 Hz
• Factory Integrated HT C02 computer - contact Sales for details.
Detectable Resolutions Accessories
VGA (640 x 350) to UHD (3840 x 2160) None
Composite Video Input(s) Capabilities / Prepared for
None
None
Supported Video Signals Operating Temperature
None
-15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Product Features Storage Temperature
Full Dimming 0-100%, Multitouch, Optical Bonding Technology,
PIP (Picture In Picture), Tilt Adjustable Floor Model, 2 x USB2.0 External -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Power Specifi cations and Consumption IP Rating
115/230VAC - 50/60Hz Protection: IP66 front - IP22 rear (EN60529)
Operating with HT C02 computer: TBD W (typ) - 600W (max)
Operating without HT C02 computer: TBD W (typ) - 380W (max) Compass Safe Distance
User Controls and Activity Standard: TBD - Steering: TBD
Glass Display Control™ (GDC) IP66 with: Type Approval, Testing and Certifi cates
Power On/Off (display), On Screen Display Menu, IEC 60945 4th (EN 60945:2002)*, IACS E10*,
Brightness Control (-/+), Hotkeys (left/right), EU-RO-MR - Mutual Recognition*
Mode Status Indicators (ECDIS, Service), Buzzer (not visible), *=pending
Light Sensor (not visible).
Additional Controls: Tilt buttons, Main Power ON/OFF switch
