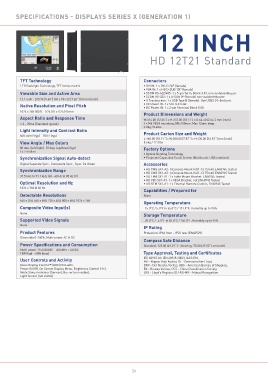

SPECIFICATIONS - DISPLAYS SERIES X (GENERATION 1)

12 INCH

HD 12T21 Standard

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix • DVI IN: 1 x DVI-D 24P (female)
• VGA IN: 1 x HD D-SUB 15P (female)
Viewable Size and Active Area • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer
• SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer
12.1 inch - 245.76 [9.68’’] (H) x 184.32 [7.26’’] (V) mm [inch] • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port.
Native Resolution and Pixel Pitch • AC Power IN: 1 x Std. IEC Inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08
1024 x 768 (XGA) - 0.24 (H) x 0.24 (V) mm Product Dimensions and Weight
Aspect Ratio and Response Time W:314.00 [12.36’’] x H:272.00 [10.71’’] x D:64.50 [2.54’’] mm [inch]
4:3 - 35ms (Standard typical) 4 x M6 VESA mounting 280x150mm, Max 12mm deep.
3.8kg / 8.4lbs
Light Intensity and Contrast Ratio
600 cd/m² (typ) - 700:1 (typ) Product Carton Size and Weight
L:460.00 [18.11’’] x W:200.00 [7.87’’] x H:430.00 [16.93’’] mm [inch]
View Angle / Max Colors 5.6kg / 12.3lbs
80 deg. (left/right), 70 deg. (up/down) (typ) Factory Options
16.7 million
• Optical Bonding Technology
Synchronization Signal Auto-detect • Projected Capacitive Touch Screen (Multitouch, USB interface)
Digital Separate Sync., Composite Sync., Sync. On Green Accessories
Synchronization Range • HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
• HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) • HD TMB SX1-A1: 1 x Table Mount Bracket. EN60945 Tested
• HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested
Optimal Resolution and Hz • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
1024 x 768 @ 60 Hz
Capabilities / Prepared for
Detectable Resolutions None
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768 Operating Temperature
Composite Video Input(s) -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
None Storage Temperature
Supported Video Signals -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
None
IP Rating
Product Features Protection: IP66 front - IP22 rear (EN60529)
Dimmable 0-100%, Multi-power AC & DC
Compass Safe Distance
Power Specifi cations and Consumption Standard: 125.00 [49.21’’] - Steering: 75.00 [29.53’’] cm [inch]
Multi-power 115/230VAC - 50/60Hz + 24VDC
15W (typ) - 60W (max) Type Approval, Testing and Certifi cates
User Controls and Activity IEC 60945 4th (EN 60945:2002), IACS E10,
NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd,
Glass Display Control™ (GDC) IP66 with: DNV - Det Norske Veritas, ABS - American Bureau of Shipping,
Power On/Off, On Screen Display Menu, Brightness Control (-/+), BV - Bureau Veritas, CCS - China Classifi cation Society,
Mode Status Indicator (Service), Buzzer (not visible), LRS - Lloyd’s Register, EU-RO-MR - Mutual Recognition
Light Sensor (not visible)
