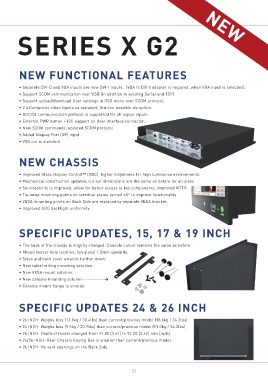

SERIES X G2 NEW

NEW FUNCTIONAL FEATURES

• Separate DVI-D and VGA inputs are now DVI-I inputs. (VGA to DVI-I adapter is required, when VGA input is selected).
• Support SCOM communication over USB (in addition to existing Serial and TCP).
• Support upload/download User settings in OSD menu over SCOM protocol.
• 2 x Composite video inputs as standard, 3rd one possible via option.
• DDC/CI communication protocol is supported for all signal inputs.
• External PWR button + I2C support on User interface connector.
• New SCOM commands, updated SCOM protocol.
• Added Display Port (DP) input.
• VGA out is standard.

NEW CHASSIS

• Improved Glass Display Control™ (GDC), higher brightness for high luminance environments.
• Mechanical construction updated, cut out dimensions are the same as before for all sizes.
• Serviceability is improved, allow for better access to key components, improved MTTR.
• Tie-wrap mounting points on terminal plates turned 45° to improve functionality.
• VESA mounting points on Back Side are replaced by separate VESA bracket.
• Improved GDC backlight uniformity.

SPECIFIC UPDATES, 15, 17 & 19 INCH

• The back of the chassis is slightly changed. Console cutout remains the same as before.
• Moved buzzer hole location, (on glass) 1.5mm upwards.
• Sides and back cover extends further down.
• New table/ceiling mounting solution.
• New VESA mount solution.
• New console mounting solution -----------→
• Console mount flange is smaller.

SPECIFIC UPDATES 24 & 26 INCH

• 26 INCH: Weighs less (13.8kg / 30.4lbs) than current/previous model (15.6kg / 34.3lbs)
• 24 INCH: Weighs less (9.5kg / 20.9lbs) than current/previous model (11.0kg / 24.2lbs)
• 26 INCH: Depth of model changed from 91.80 [3.61] to 92.00 [3.62] mm [inch].
• 24/26 INCH: Rear Chassis Casing Box is smaller than current/previous model.
• 26 INCH: No vent openings on the Back Side.
