NEW

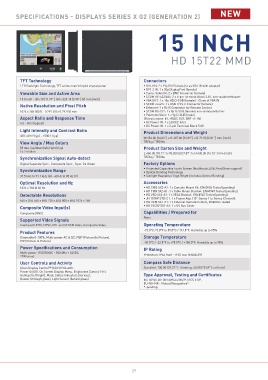

SPECIFICATIONS - DISPLAYS SERIES X G2 (GENERATION 2)

15 INCH

HD 15T22 MMD

TFT Technology Connectors
LED Backlight Technology, TFT active-matrix liquid crystal panel • DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter)
• DP1.2 IN: 1 x 20p DisplayPort (female)
Viewable Size and Active Area • Comp. Video IN: 2 x BNC Connector (female)
• SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
15.0 inch - 304.10 [11.97’’] (H) x 228.10 [8.98’’] (V) mm [inch] • VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN
Native Resolution and Pixel Pitch • SCOM+Touch: 1 x USB TYPE A Connector (female)
• Ethernet: 1 x RJ45 Connector for Remote Control
1024 x 768 (XGA) - 0.297 (H) x 0.297 (V) mm • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer
• Potmeter/User: 1 x 9p D-SUB (male)
Aspect Ratio and Response Time (Potentiometer IN, +5VDC OUT, BRT +/- IN)
4:3 - 8ms (typical) • AC Power IN: 1 x Std IEC Inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08
Light Intensity and Contrast Ratio Product Dimensions and Weight
400 cd/m² (typ) - 1500:1 (typ)
W:356.00 [14.02’’] x H:307.00 [12.09’’] x D:71.50 [2.81’’] mm [inch]
View Angle / Max Colors TBDkg / TBDlbs
85 deg. (up/down/left/right) (typ) Product Carton Size and Weight
16.7 million
L:460.00 [18.11’’] x W:200.00 [7.87’’] x H:430.00 [16.93’’] mm [inch]
Synchronization Signal Auto-detect TBDkg / TBDlbs
Digital Separate Sync., Composite Sync., Sync. On Green Factory Options
Synchronization Range • Projected Capacitive Touch Screen (Multitouch,USB, Pen/Glove support)
• Optical Bonding Technology
31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) • Sunlight Readable / High Bright (includes Optical Bonding)
Optimal Resolution and Hz Accessories
1024 x 768 @ 60 Hz • HD CMB SX2-A1: 1 x Console Mount Kit. EN60945 Tested (pending)
• HD TMB SX2-A1: 1 x Table Mount Bracket. EN60945 Tested (pending)
Detectable Resolutions • HD VED SX2-A1: 1 x VESA Bracket. EN60945 Tested (pending)
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768 • JH 15TAP STD-C1: 1 x Frame Adp. (15’’ Series 1 to Series X) retrofi t
• HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
Composite Video Input(s) • HD 15COV SX1-A1: 1 x UV Sun Cover
Composite (BNC) Capabilities / Prepared for
None
Supported Video Signals
Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video Operating Temperature
Product Features -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Dimmable 0-100%, Multi-power AC & DC, PBP (Picture By Picture), Storage Temperature
PIP (Picture In Picture) -30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
Power Specifi cations and Consumption IP Rating
Multi-power 115/230VAC - 50/60Hz + 24VDC
22W (max) Protection: IP66 front - IP22 rear (EN60529)
User Controls and Activity Compass Safe Distance
Glass Display Control™ (GDC) IP66 with: Standard: 100.00 [39.37’’] - Steering: 65.00 [25.59’’] cm [inch]
Power On/Off, On Screen Display Menu, Brightness Control (-/+),
Hotkeys (left/right), Mode Status Indicators (Service), Type Approval, Testing and Certifi cates
Buzzer (through glass), Light Sensor (behind glass) IEC 60945 4th (EN 60945:2002)*, IACS E10*,
EU-RO-MR - Mutual Recognition*
*=pending
