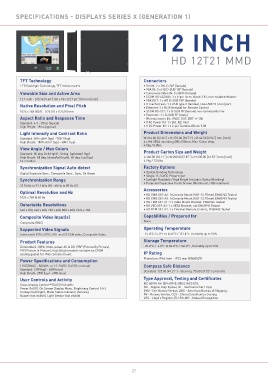

SPECIFICATIONS - DISPLAYS SERIES X (GENERATION 1)

12 INCH

HD 12T21 MMD

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix • DVI IN: 2 x DVI-D 24P (female)
• VGA IN: 2 x HD D-SUB 15P (female)
Viewable Size and Active Area • Composite Video IN: 3 x BNC (female)
• SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer
12.1 inch - 245.76 [9.68’’] (H) x 184.32 [7.26’’] (V) mm [inch] • VGA OUT: 1 x HD D-SUB 15P (female)
Native Resolution and Pixel Pitch • If Touchscreen: 1 x USB Type A (female). Use USB2.0 (<5m) port.
• Ethernet: 1 x RJ45 (female) for Remote Control
1024 x 768 (XGA) - 0.24 (H) x 0.24 (V) mm • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer
• Potmeter: 1 x D-SUB 9P (male),
Aspect Ratio and Response Time - (Potentiometer IN, +5VDC OUT, BRT +/- IN)
Standard: 4:3 - 35ms (typical) • If AC Power IN: 1 x Std. IEC Inlet
High Bright: 19ms (typical) • If DC Power IN: 1 x 2-pin Terminal Block 5.08
Light Intensity and Contrast Ratio Product Dimensions and Weight
Standard: 600 cd/m² (typ) - 700:1 (typ) W:314.00 [12.36’’] x H:272.00 [10.71’’] x D:64.50 [2.54’’] mm [inch]
High Bright: 1000 cd/m² (typ) - 600:1 (typ) 4 x M6 VESA mounting 280x150mm, Max 12mm deep.
4.0kg / 8.8lbs
View Angle / Max Colors
Standard: 80 deg. (left/right), 70 deg. (up/down) (typ) Product Carton Size and Weight
High Bright: 80 deg. (down/left/right), 60 deg. (up) (typ) L:460.00 [18.11’’] x W:200.00 [7.87’’] x H:430.00 [16.93’’] mm [inch]
16.7 million 5.9kg / 13.0lbs
Synchronization Signal Auto-detect Factory Options
Digital Separate Sync., Composite Sync., Sync. On Green • Optical Bonding Technology
• Single 12-24VDC Power Input
Synchronization Range • Sunlight Readable / High Bright (includes Optical Bonding)
• Projected Capacitive Touch Screen (Multitouch, USB interface)
31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V)
Optimal Resolution and Hz Accessories
• HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
1024 x 768 @ 60 Hz • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
• HD TMB SX1-A1: 1 x Table Mount Bracket. EN60945 Tested
Detectable Resolutions • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768 • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
Composite Video Input(s) Capabilities / Prepared for
Composite (BNC) None
Supported Video Signals Operating Temperature
Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Product Features Storage Temperature
Dimmable 0-100%, Multi-power AC & DC, PBP (Picture By Picture), -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
PIP (Picture In Picture), High Bright models includes an EPDM
sealing gasket for IP66 console mount. IP Rating
Power Specifi cations and Consumption Protection: IP66 front - IP22 rear (EN60529)
115/230VAC - 50/60Hz or 12-24VDC (14VDC nominal) Compass Safe Distance
Standard: 21W (typ) - 60W (max) Standard: 125.00 [49.21’’] - Steering: 75.00 [29.53’’] cm [inch]
High Bright: 29W (typ) - 60W (max)
User Controls and Activity Type Approval, Testing and Certifi cates
Glass Display Control™ (GDC) IP66 with: IEC 60945 4th (EN 60945:2002), IACS E10,
Power On/Off, On Screen Display Menu, Brightness Control (-/+), NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd,
Hotkeys (left/right), Mode Status Indicator (Service), DNV - Det Norske Veritas, ABS - American Bureau of Shipping,
Buzzer (not visible), Light Sensor (not visible) BV - Bureau Veritas, CCS - China Classifi cation Society,
LRS - Lloyd’s Register, EU-RO-MR - Mutual Recognition
