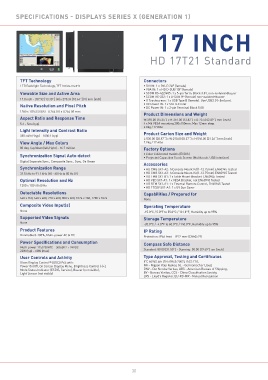

SPECIFICATIONS - DISPLAYS SERIES X (GENERATION 1)

17 INCH

HD 17T21 Standard

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix • DVI IN: 1 x DVI-D 24P (female)
• VGA IN: 1 x HD D-SUB 15P (female)
Viewable Size and Active Area • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer
• SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer
17.0 inch - 337.92 [13.30’’] (H) x 270.34 [10.64’’] (V) mm [inch] • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port.
Native Resolution and Pixel Pitch • AC Power IN: 1 x Std. IEC inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08
1280 x 1024 (SXGA) - 0.264 (H) x 0.264 (V) mm Product Dimensions and Weight
Aspect Ratio and Response Time W:390.00 [15.35’’] x H:351.00 [13.82’’] x D:73.50 [2.89’’] mm [inch]
5:4 - 5ms (typ) 4 x M6 VESA mounting 280x150mm, Max 12mm deep.
5.8kg / 12.8lbs
Light Intensity and Contrast Ratio
350 cd/m² (typ) - 1000:1 (typ) Product Carton Size and Weight
L:530.00 [20.87’’] x W:210.00 [8.27’’] x H:540.00 [21.26’’] mm [inch]
View Angle / Max Colors 7.9kg / 17.4lbs
80 deg. (up/down/left/right) - 16.7 million Factory Options
Synchronization Signal Auto-detect • Color Calibrated models (ECDIS)
• Projected Capacitive Touch Screen (Multitouch, USB interface)
Digital Separate Sync., Composite Sync., Sync. On Green Accessories
Synchronization Range • HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
• HD TMB SX1-B1: 1 x Table Mount Bracket. EN60945 Tested
Optimal Resolution and Hz • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested
1280 x 1024 @ 60 Hz • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
• HD 17COV SX1-A1: 1 x UV Sun Cover
Detectable Resolutions Capabilities / Prepared for
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024 None
Composite Video Input(s) Operating Temperature
None -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Supported Video Signals Storage Temperature
None
-20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Product Features IP Rating
Dimmable 0-100%, Multi-power AC & DC Protection: IP66 front - IP22 rear (EN60529)
Power Specifi cations and Consumption Compass Safe Distance
Multi-power 115/230VAC - 50/60Hz + 24VDC
22W (typ) - 60W (max) Standard: 80.00 [31.50’’] - Steering: 50.00 [19.69’’] cm [inch]
User Controls and Activity Type Approval, Testing and Certifi cates
Glass Display Control™ (GDC) IP66 with: IEC 60945 4th (EN 60945:2002), IACS E10,
Power On/Off, On Screen Display Menu, Brightness Control (-/+), NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd,
Mode Status Indicator (ECDIS, Service), Buzzer (not visible), DNV - Det Norske Veritas, ABS - American Bureau of Shipping,
Light Sensor (not visible) BV - Bureau Veritas, CCS - China Classifi cation Society,
LRS - Lloyd’s Register, EU-RO-MR - Mutual Recognition
