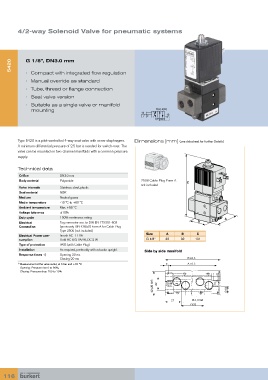

4/2-way Solenoid Valve for pneumatic systems

5420 G 1/8”, DN3.0 mm

• Compact with integrated flow regulation
• Manual override as standard
• Tube, thread or flange connection
• Seat valve version
• Suitable as a single valve or manifold
mounting 2(A) 4(B)
14
12
1(P) 3(R)

Type 5420 is a pilot-controlled 4-way seat valve with servo-diaphragms. Dimensions [mm] (see datasheet for further Details)
A minimum differential pressure of 2.5 bar is needed for switch-over. The
valve can be mounted on two-channel manifolds with a common pressure
supply.

Technical data
Orifice DN3.0 mm
Body material Polyamide 2508 Cable Plug Form A C
not included
Valve internals Stainless steel, plastic
Seal material NBR
Medium Neutral gases
Media temperature -10 °C to +60 °C
Ambient temperature Max. +55 °C
Voltage tolerance ±10%
Duty cycle 100% continuous rating A
Electrical Tag connector acc. to DIN EN 175301-803 B
Connection (previously DIN 43650) Form A for Cable Plug
Type 2508 (not included)
Size A B C
Electrical Power con- Inrush AC 11 VA
sumption Hold AC 6/2 VA/W, DC 2 W G 1/8” 32 32 101
Type of protection IP65 (with Cable Plug)
Installation As required, preferably with actuator upright Side by side manifold
Response times 1) Opening 30 ms
Closing 20 ms
1) Measurement at the valve outlet, at 6 bar and +20 °C
Opening: Pressure rise 0 to 90%,
Closing: Pressure drop 100 to 10%

116
