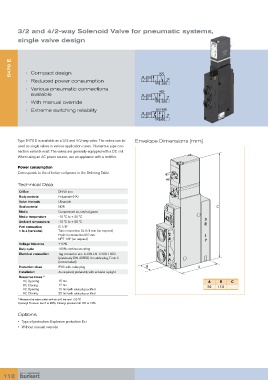

3/2 and 4/2-way Solenoid Valve for pneumatic systems,
single valve design

5470 E • Compact design 2(A)

• Reduced power consumption 12 10
1(P) 3(R)
• Various pneumatic connections
available 10 4(B)
12
• With manual override 1(P) 3(R)
• Extreme switching reliability 2(A) 4(B)
14
12
1(P) 3(R)

Type 5470 E is available as a 3/2 and 4/2-way valve. The valves can be Envelope Dimensions [mm]
used as single valves in various application cases. Numerous pipe con-
nection variants exist. The valves are generally equipped with a DC coil.
When using an AC power source, use an appliance with a rectifier.

Power consumption
Corresponds to the effective coil power in the Ordering Table.

Technical Data
Orifice DN4.0 mm
Body material Polyamide (PA)
Valve internals Ultramide
Seal material NBR C
Media Compressed air, neutral gases
Media temperature -10 °C to + 50 °C
Ambient temperature -10 °C to + 55 °C
Port connection G 1/8”
1 to 4 (versions) Tube connection SL 6/4 mm (on request)
Push-in connection Ø 6 mm
NPT 1/8” (on request)
Voltage tolerance ±10%
Duty cycle 100% continuous rating
Electrical connection Tag connector acc. to DIN EN 175301-803
(previously DIN 43650) for cable plug, Form C
(not included)
Protection class IP65 with cable plug B A
Installation As required, preferably with actuator upright
Response times 1)
DC Opening 15 ms A B C
DC Closing 12 ms 59 17.5
AC Opening 15 ms (with cable plug rectifier)
AC Closing 20 ms (with cable plug rectifier)
1) Measured at valve outlet with air at 6 bar and +20 ºC
Opening: Pressure rise 0 to 90%, Closing: pressure fall 100 to 10%
Options
• Type of protection: Explosion protection Ex i
• Without manual override
