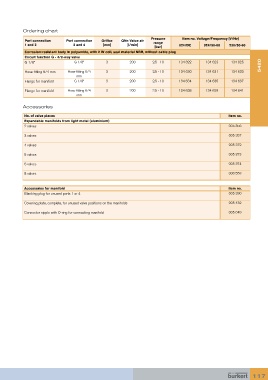

Ordering chart
Pressure Item no. Voltage/Frequency [V/Hz]
Port connection Port connection Orifice QNn Value air range
1 and 3 2 and 4 [mm] [l/min] 024/DC 024/50-60 230/50-60
[bar]
Corrosion-resistant body in polyamide, with 2 W coil, seal material NBR, without cable plug
Circuit function G - 4/2-way valve
G 1/8” G 1/8” 3 200 2.5 - 10 134 622 134 623 134 625 5420
Hose fitting 6/4 mm Hose fitting 6/4 3 200 2.5 - 10 134 630 134 631 134 633
mm
Flange for manifold G 1/8” 3 200 2.5 - 10 134 634 134 635 134 637
Flange for manifold Hose fitting 6/4 3 200 2.5 - 10 134 638 134 639 134 641
mm

Accessories

No. of valve places Item no.
Expandable manifolds from light metal (aluminium)
2 valves 005 356

3 valves 005 357

4 valves 005 372
5 valves 005 373

6 valves 005 374

8 valves 006 553

Accessories for manifold Item no.
Blanking plug for unused ports 1 or 4 005 390

Covering plate, complete, for unused valve positions on the manifolds 005 432
Connector nipple with O-ring for connecting manifold 005 049

117
